ESC Twisted Hobbys 6A Bolt - JST

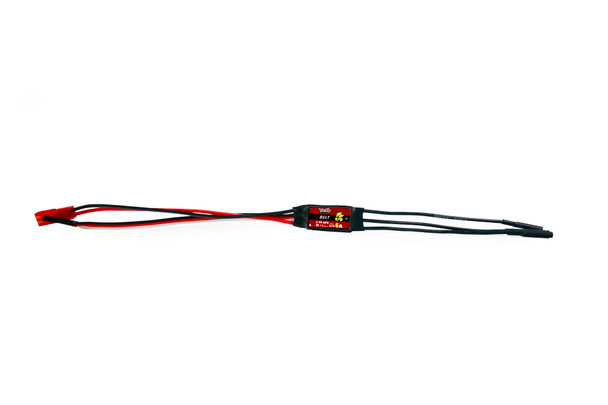

Twisted Hobbys "Bolt" Series 6A esc was deign specifically for reduced weight and the perfect smooth throttle feel pilots are after.   Default programmed settings work perfectly with our Crack Series out runner motors allowing for a true plug and plug operation.  All Bolt series ESC are programmable offer the highest performance and reliability you can trust.  Each 6A Bolt Series esc are constructed with (1) female JST battery connector, (3) 2mm bullet connectors allowing for a true plug and play setup.

Specs:
 Continuous 6A,Burst 8A (10 sec's)
 Input: 2-4s Lipo
 BEC : 5V/1+A Linear
 Measurement: 22x13x5mm
 Weight: 6.9g including 2mm bullet & female JST connector
 Recommended Prop Setup: 2s w/ 8x4.3 slow fly

Default Pre-Programmed Settings:
 Battery Type = Lipo
 Governor Model = Rpm Off
 Start Up = Soft
 Brake = Off
 Timing = Auto
 Rotation = Normal
 Voltage cut off = 3.00 (60%)
 Cut off Power = Reduce power

• Same default settings as Programming Card: Link
• PDF Manual: Link
• Throttle Calibration Process video Link: Must complete to operate ESC
