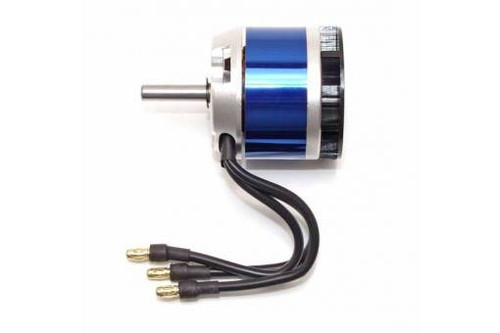

1806 2300KV 21g Brushless Motor (Witch)

The SkyRC X1806 2300KV is a compact and efficient brushless motor, perfect for small to medium-sized multirotors and lightweight airplane models. Crafted with high-quality materials and precision engineering, this motor delivers smooth performance with enhanced durability.

Key Features:

• Precision Balanced – Professional balancing ensures optimal concentricity.
• Genuine NMB Bearings – Low resistance for efficient power transfer.
• High-Purity Copper Windings – Maximized conductivity for reliable performance.
• Leaf-Shaped Front Cap – Improved cooling for extended operation.
• Silicone Wires – Easy to cut and manage for clean installations.

Applications:

• Designed for the RcFactory Witch (attaches using 2 or 4 bolts based on flange design).
• Suitable for small to medium-sized multirotors and lightweight aircraft models.

Specifications:

• KV (RPM/Volt): 2300KV
• Rotor Poles: 14
• Voltage: 2-3S LiPo
• Stator: 12
• Resistance: 0.168Ω
• Weight: 22g
• No Load Current: 0.5A @ 11.1V
• Length: 30mm
• Shaft Diameter: 2mm
• Motor Diameter: 23mm

Includes:

• 1 CC/CCW motor
• (4) mounting allen head bolts
• prop mount screw head
