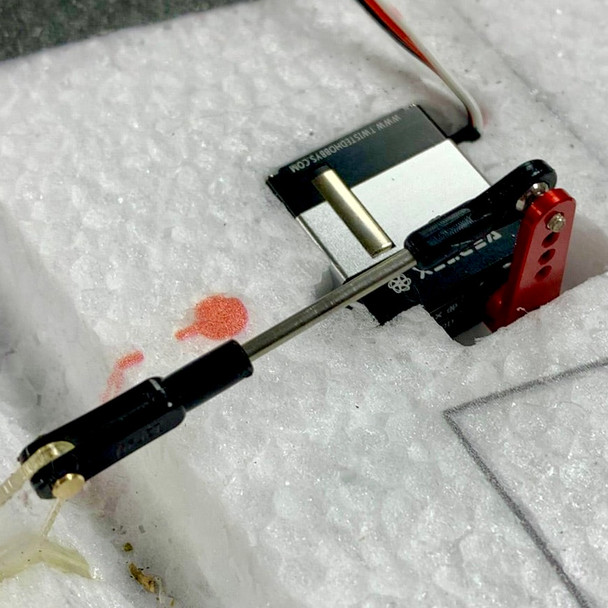

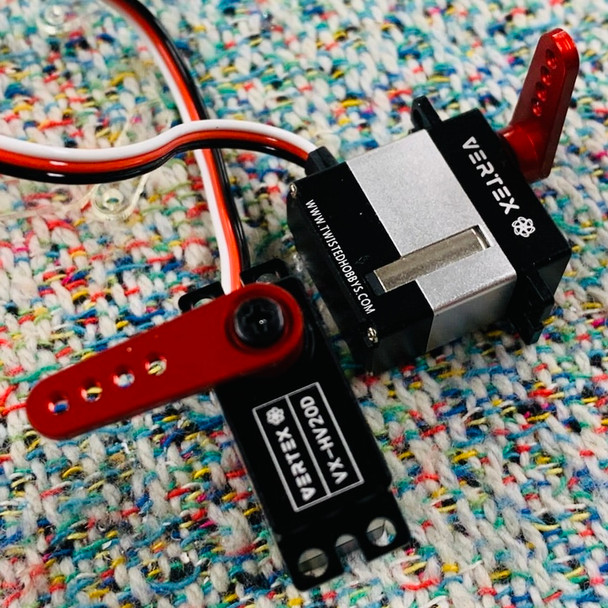

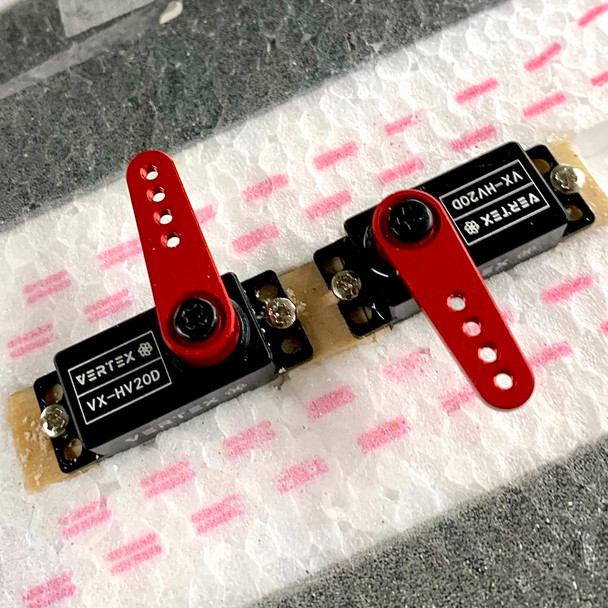

Vertex - VX-HV20D 20g High Voltage Metal Case & Gear Servo
(No reviews yet)
Write a Review
- SKU:
- VX-HV20D
- Bulk Pricing:
- Buy in bulk and save
Description
Twisted Hobbys Vertex servos deliver insane speed, power, and durability. Built with metal gears and cases, the VX HV20D runs on high voltage for peak performance. Custom-designed, team-tested, and flight-proven for unmatched reliability in your Twisted Hobbys builds.
Model No: VX-HV20D
Specifications:
Operating Voltage: 6–8.4VDC
Stall Torque: 4.5–6.7kgf·cm @ 6–8.4V
No Load Speed: 0.12–0.09sec/60° @ 6–8.4V
Mechanical Limit Angle: 360°
Casing Material: CNC Machined Aluminum
Gear Material: Metal Gears / Horn Alum
Motor Type: Coreless Motor
Weight: 20.0g ± 1g (depending on wire length) standard wire length: 35cm length.
Dimensions: 12×27×23mm
