Description
Crack Series Pro servos are custom-designed for Twisted Hobbys aircraft, delivering excellent performance, precision, and durability. Featuring digital operation, metal gears, higher-voltage capability, and a transparent case, each servo is team tested and approved for dependable flight after flight.

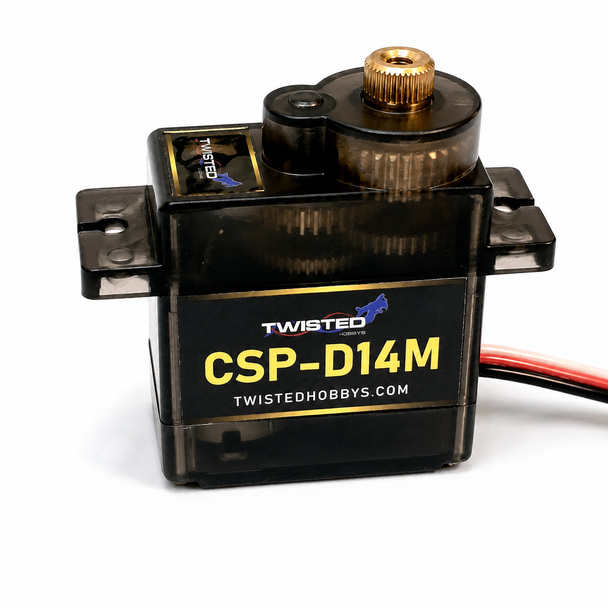

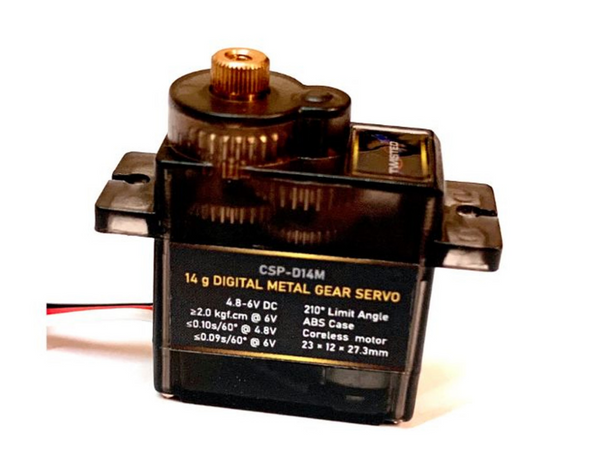

CSP-D14M Specifications
• Operating Voltage: 4.8–6V DC
• Stall Torque: ≥2.0 kgf·cm at 6V
• No-Load Speed: ≤0.10 sec/60° at 4.8V
• No-Load Speed: ≤0.09 sec/60° at 6V
• Mechanical Limit Angle: 210°
• Case Material: ABS
• Gear Material: Metal
• Motor Type: Coreless motor
• Weight: 14 g ±0.5 g with wire
• Dimensions: 27.5 × 12 × 30 mm
• Wire Length: 12.5 in / 317 mm
