D14 Differential Arm (DIFF AILERON CONTROL HORN)

(No reviews yet) Write a Review
SKU:
MANU SHD1
  • D14 Differential Arm (DIFF AILERON CONTROL HORN)
  • D14 Differential Arm (DIFF AILERON CONTROL HORN)
  • D14 Differential Arm (DIFF AILERON CONTROL HORN)
  • D14 Differential Arm (DIFF AILERON CONTROL HORN)
$5.99

Sold Out

Description

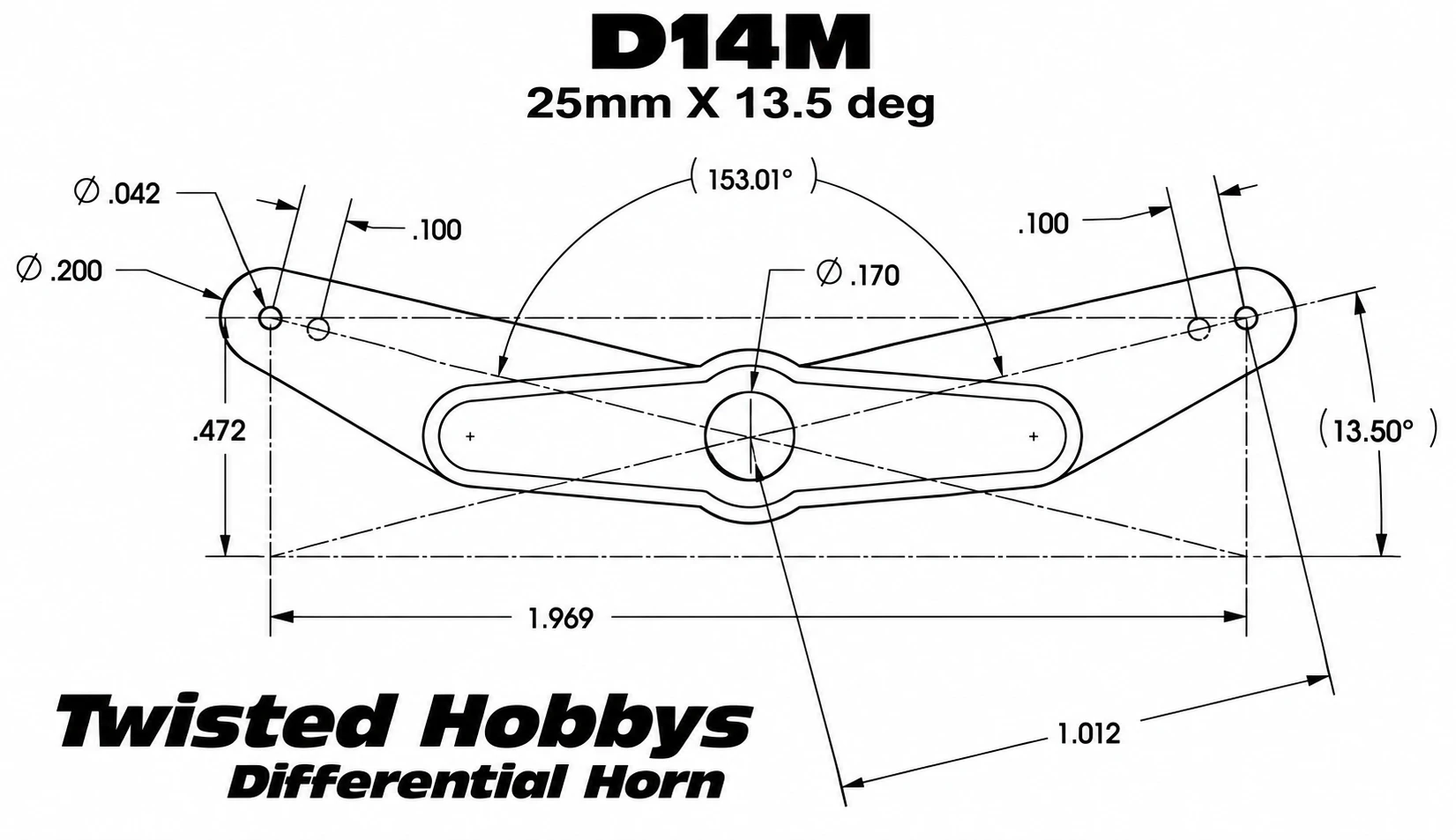

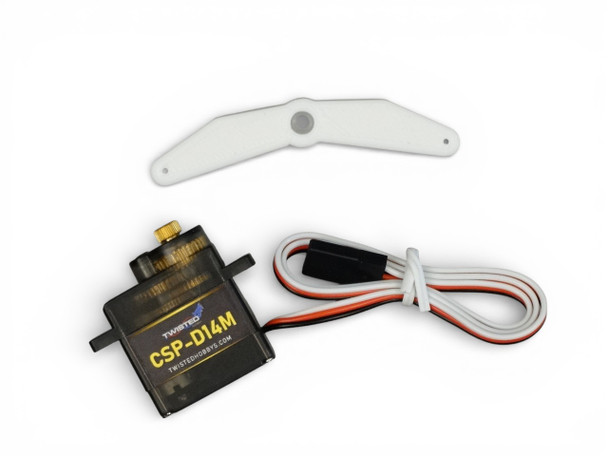

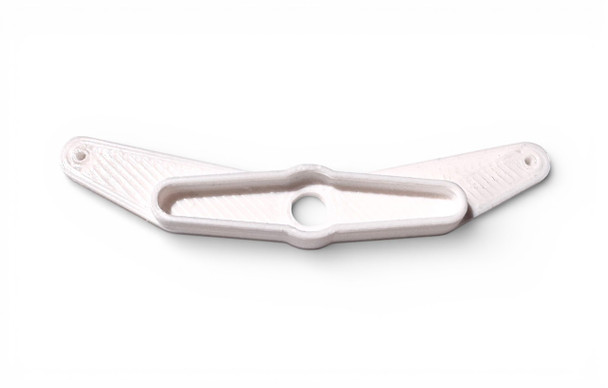

The D14 Diff Horn provides a clean, straightforward way to create a differential aileron linkage on smaller and mid-size aircraft using a single D14M servo. Designed to fit the stock small servo arm, it is compatible with both CSP-D14M and Vertex VX-D14M servos and can be removed for adjustment or secured permanently when desired.

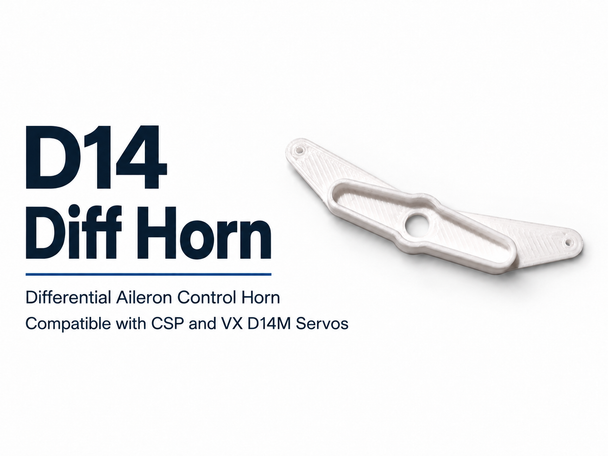

D14 Diff Horn Overview
Differential Aileron Control
Product
D14 Diff Horn
Compatible Servos
CSP-D14M / VX-D14M
Application
Aileron Differential
Installation
Fits Stock Small Arm
Package Includes
1 × D14 Diff Horn
Simplifies Single-Servo Aileron Differential
The D14 Diff Horn makes it easier to arrange a differential linkage when one CSP-D14M or VX-D14M servo operates both ailerons. It was developed around standard mono-aircraft installations and can also be adapted to other suitable differential-control assemblies.
Shop Servos
Compatibility and Application
Compatible Servo: Vertex VX-D14M
Legacy Compatibility: CSP-D14M
Primary Use: Single-servo aileron differential
Aircraft Range: Smaller and mid-size models with a suitable D14M linkage arrangement
Installation and Package
Mounting: Fits over the stock small D14M servo arm
Removable Fit: No screw or adhesive is required for initial installation
Permanent Installation: CA or a similar suitable adhesive may be used
Package Includes: 1 × D14 Diff Horn
Installation Note: Center the servo and dry-fit the D14 Diff Horn before connecting the aileron linkages. Confirm the horn orientation, differential movement, full control travel, and clearance without binding before applying adhesive for a permanent installation.
