VS D14M 14g Digital Micro Metal Gear Servo

(No reviews yet) Write a Review
SKU:
VS-D14M
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 4 - 10 and get 5% off
  • Buy 11 or above and get 7% off
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
  • VS D14M 14g Digital Micro Metal Gear Servo
$28.99

Sold Out

Description

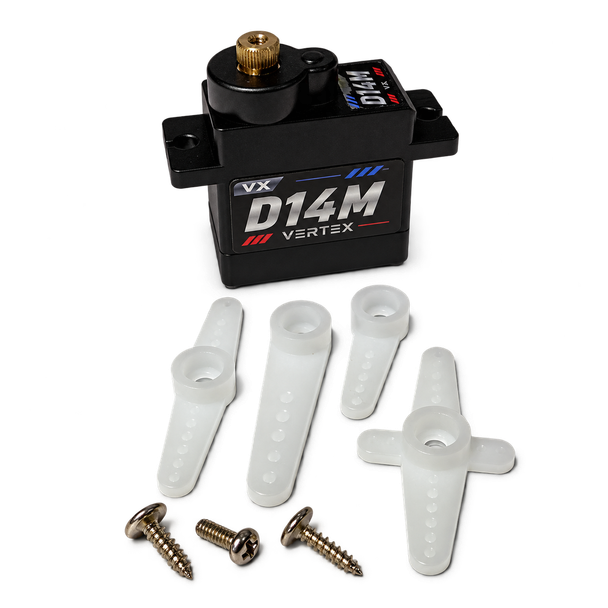

The Vertex VX-D14M is a strong, compact digital micro servo developed for precise, dependable control in Twisted Hobbys aircraft. Its metal gear train, coreless motor, quick response, and 4.8–6V operating range provide smooth performance and durability while keeping installed weight to just 14 g with wire. Each VX servo is team tested and approved for dependable flight after flight.

VX-D14M Servo Overview
Digital Metal-Gear Micro Servo
Model
VX-D14M
Operating Voltage
4.8–6V DC
Stall Torque
≥2.0 kgf·cm at 6V
Speed
≤0.09 sec / 60° at 6V
Weight
14 g ±0.5 g
Gear Material
Metal
Greater Torque for Lightweight Aerobatic Aircraft
The VX-D14M combines 2.0 kgf·cm of torque, a compact 12 mm-wide case, metal gears, and fast digital response for EPP aircraft requiring a stronger micro servo without unnecessary weight.
Shop Servos

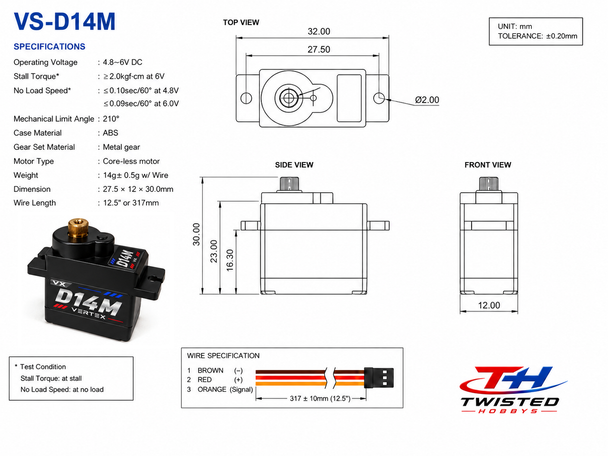

Performance Specifications
Operating Voltage: 4.8–6V DC
Stall Torque: ≥2.0 kgf·cm at 6V
No-Load Speed at 4.8V: ≤0.10 sec / 60°
No-Load Speed at 6V: ≤0.09 sec / 60°
Mechanical Limit Angle: 210°
Motor Type: Coreless motor
Construction and Dimensions
Case Material: Transparent ABS
Gear Material: Metal
Weight: 14 g ±0.5 g with wire
Dimensions: 27.5 × 12 × 30 mm
Wire Length: 12.5 in / 317 mm
Setup Note: Center the VX-D14M electronically before installing the servo arm. Confirm the correct control direction and adjust travel endpoints so the servo and linkage move freely without binding.
