Name: Power Combo 24" Mini - CRACK SERIES DMG -
SKU: PC09
Price: 129.99 USD
Availability: InStock
Rating: 5 (6 reviews)

Power Combo 24" Mini - CRACK SERIES DMG -

(6 reviews) Write a Review

SKU:

PC09

Description
Videos
6 Reviews

Description

The PC09 is a professionally matched power system developed for the 24-inch Twisted Hobbys Mini Series aircraft. Every component is selected to work together for lightweight power, precise control, reliable operation, and straightforward installation. Bundle and save with a proven package that costs less than purchasing the components individually.

PC09 System Overview

2S Mini Series

System

PC09

Motor

2202 2300KV

ESC

BOLT 6A

BEC Output

5V / 1A+

Battery

2S 180–350 mAh

Propeller

GWS 7 × 3.5 DD

Matched for the 24-Inch Mini Series

The lightweight motor, ESC, three-servo package, and propeller are selected for the size, weight, and responsive aerobatic performance of the compatible Mini Series airframes.

TH 24-Inch Mini Crack Yak-55 TH 24-Inch Mini Edge 540 TH 24-Inch Mini MXS-C

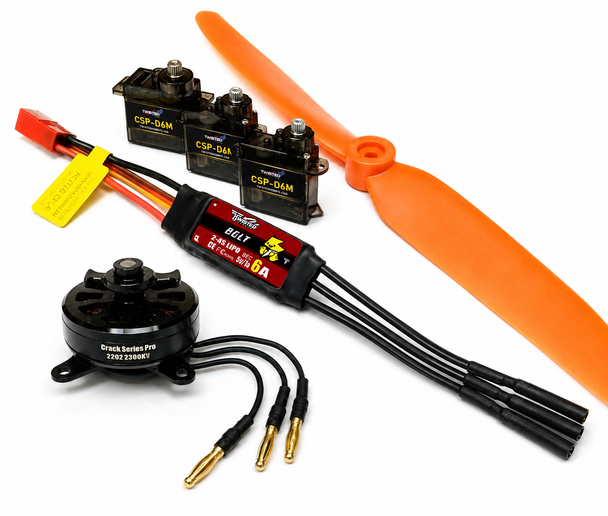

Included in the PC09 Package

1 ×

CSP 2202 2300KV Brushless Motor

Lightweight 15 g outrunner with 2 mm connectors

1 ×

BOLT 6A Brushless ESC

5V / 1A+ linear BEC with JST battery connector

3 ×

CSP-D6M Digital Metal-Gear Servos

Lightweight 5.5 g digital servos

1 ×

GWS 7 × 3.5 Direct-Drive Propeller

Matched propeller for the recommended 2S setup

Additional Items Required

Airframe

Select a compatible 24-inch Mini Series aircraft

Flight Battery

2S 180 to 350 mAh LiPo

2S 250 | 2S 350

Radio System

4-channel or greater transmitter and compatible lightweight receiver

Charger

LiPo-compatible balance charger

Airframe, battery, receiver, transmitter, charger, and adhesives are not included.

Battery Recommendation: Use a 2S 180 to 350 mAh LiPo battery with the included GWS 7 × 3.5 propeller. Select the battery capacity based on the desired balance, weight, and flight duration.

Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.
