RcF VOLTA CL 20A (Control Line)

(No reviews yet) Write a Review
SKU:
RcF VOLTA CL 20A
  • RcF VOLTA CL 20A (Control Line)
  • RcF VOLTA CL 20A (Control Line)
  • RcF VOLTA CL 20A (Control Line)
  • RcF VOLTA CL 20A (Control Line)
  • RcF VOLTA CL 20A (Control Line)
$81.99

Sold Out

Description

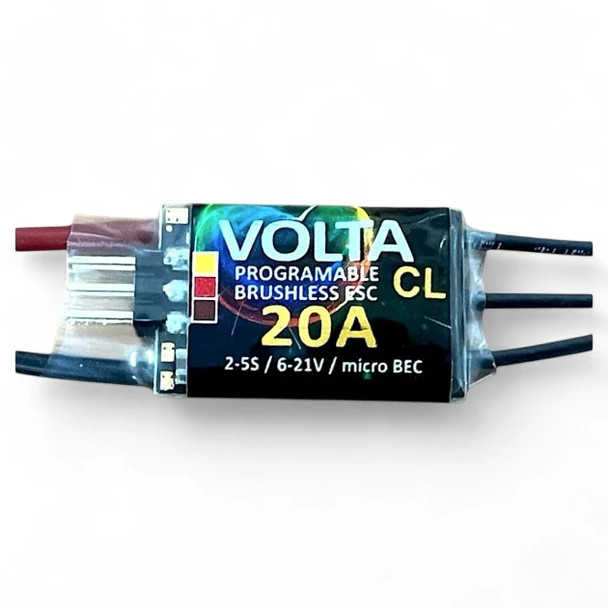

The RC Factory VOLTA CL 20A is a purpose-built brushless ESC for electric control-line aircraft. Its integrated timer and control-line sequencer manage the flight sequence, while the governor system maintains consistent motor RPM for smooth, predictable performance throughout the flight.

Continuous Current
25A
Peak Current
50A / 2 Seconds
Input Voltage
6–24V
Battery
2S–5S LiPo
3S–6S LiFe
BEC Output
8V / 150 mA
Weight
8.5 g
Designed Specifically for Control-Line Flight
Unlike a conventional aircraft ESC, the VOLTA CL combines motor control, an adjustable timer, a dedicated control-line sequencer, and governor operation in one compact unit. Configuration is available through a compatible transmitter, PC with MAV Manager, or JETIBOX.
Control-Line Functions
Timer and Sequencer: Adjustable motor-start and flight sequence for control-line operation
Governor Mode: Maintains consistent motor RPM as battery voltage changes
Adjustable Operation: Configurable acceleration, timing, motor direction, and braking
Additional Modes: Fast governor and bidirectional motor operation
Technical Features
Dimensions: 19 × 28 × 5 mm
Maximum Motor Speed: More than 300,000 eRPM with a 2-pole motor
Protection: Overvoltage, undervoltage, overheating, overcurrent, and motor-stall protection
Operating Temperature: −10 to +110°C
Integrated Telemetry
Automatically supports compatible Duplex EX, Graupner HoTT, Multiplex MSB, PowerBox P2Bus, Futaba S.Bus2, and FrSky telemetry systems.
Available telemetry includes voltage, current, power, consumed capacity, temperature, RPM, and energy, with minimum and maximum value logging.
Package Includes: VOLTA CL ESC with installed cables and a patch cable for connection to a compatible receiver or JETIBOX.
Important BEC Notice: The integrated 8V / 150 mA BEC is intended to power a compatible receiver or JETIBOX only. Do not connect or power servos from this BEC.
