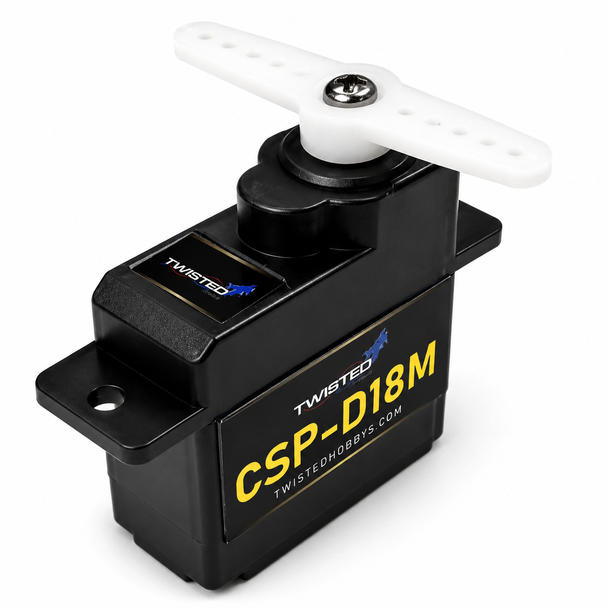

CSP D18M 18g Digital Micro Metal Gear Servo
- SKU:
- CSP-D18M
Description
Crack Series Pro servos are custom-designed for Twisted Hobbys aircraft, delivering excellent performance, precision, and durability. Featuring digital operation, metal gears, higher-voltage capability, and a transparent case, each servo is team tested and approved for dependable flight after flight.

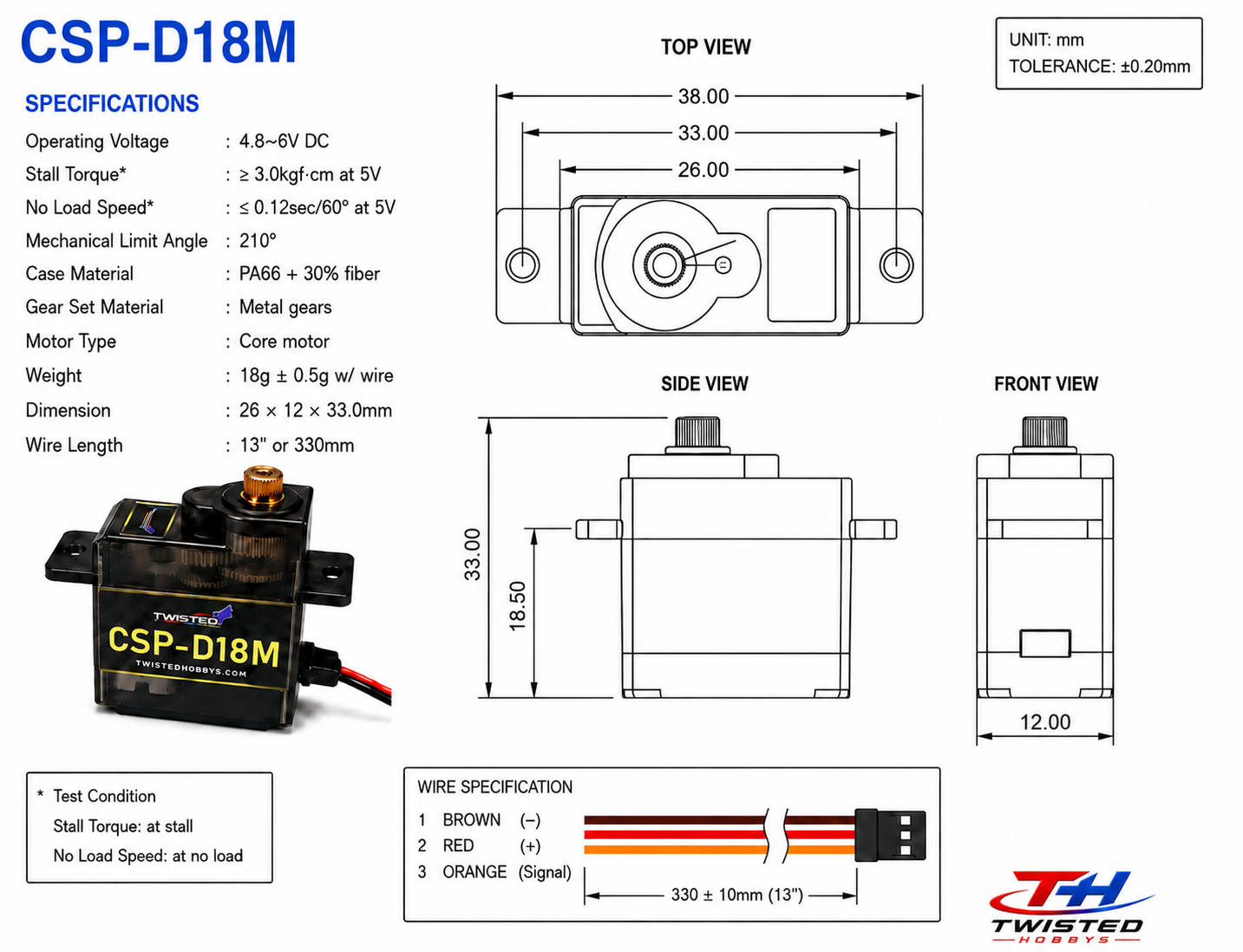

CSP-D18M Specifications
• Operating Voltage: 4.8–6V DC
• Stall Torque: ≥3.0 kgf·cm at 5V
• No-Load Speed: ≤0.12 sec/60° at 5V
• Mechanical Limit Angle: 210°
• Case Material: PA66 with 30% fiber
• Gear Material: Metal
• Motor Type: Core motor
• Weight: 18 g ±0.5 g with wire
• Dimensions: 26 × 12 × 33 mm
• Wire Length: 13 in / 330 mm
