LED Ultra Halo's Light Stick - XX1 (Large)

(4 reviews) Write a Review
SKU:
Ultra Halo - XX1
Availability:
In Stock Ready-To-Ship
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
  • LED Ultra Halo's Light Stick - XX1 (Large)
$49.99

Description

Made in the USA!!!  Introducing Ultra Halo's Light Stick's, cutting-edge LED emitter products: versatile, featherweight, low-power, rugged, and exceptionally bright. We're thrilled to announce the arrival of www.UltraHalo.com's premium LED offerings at Twisted Hobbys.

Professionally crafted for effortless installation, these LEDs ensure ultra-fast setup, allowing you to start flying immediately. Manufactured right here in the USA, they guarantee the lightest weight and highest quality available on the market today.

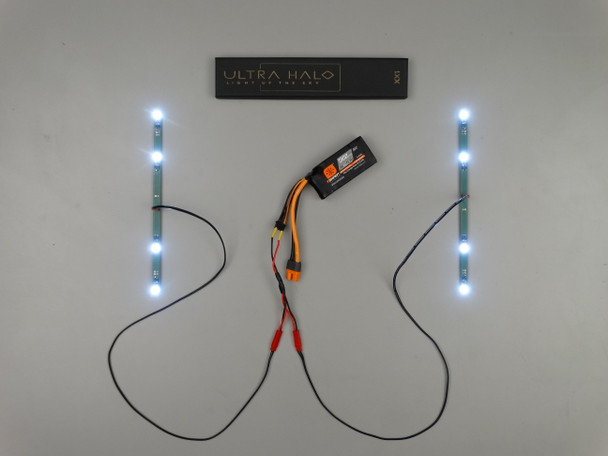

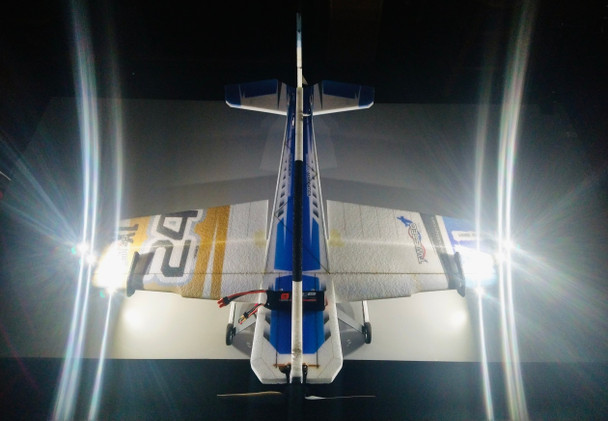

Our new Large LED Light Kit is pre-wired, requiring zero soldering. Each kit includes a JST plug connector compatible with the same 3s (11.1v) LiPo battery that powers your model, eliminating the need for additional connectors. With two LEDs on top and two on the bottom of each side bar, these lights create a brilliantly illuminated inward view of your model.

Specs:
  • XX1 Size (32-48" wingspan)
  • Each "bar/stick" draws .10 amps (100 millamps)
  • Max volts of 16v with out damaging unit, draw will be 150ma at 16 volts
  • Recommended operating voltage is 11.4-12.6 volts
  • Can run either direction polarity with out any worries of damaging unit.
  • Power Dissipation: 700 mW (with cooling/heat sinking)
  • Continuous Forward Current: 200mA (with cooling/heat sinking, 25 mA indefinitely)
  • Operating Temperature: -40 to +85 Celsius (up to 185 degrees F)
  • Storage Temperature: -40 to +100 C
  • Color Temperature: 6500K (daylight)
  • Luminous Flux 53 lumens typ. at 120 mA
  • Optical Efficiency 141 1m/w
  • Mechanical Shock: 1500G 0.5msec pulse
  • Total Lumens per stick: 100 Lumens (about 9 foot-candles; average flashlight)
  • Measuring just under 8" in over all length giving a large spread for model viewing:
  • Shorter configuration option:  We designed these so pilots can install on shorter models as well.  Just cut an LED off both ends of each stick which will remove 2 off each stick (top and bottom)  This will not effect or damage the design.

PDF Manual: LINK

RcGroup: LINK


View AllClose

4 Reviews

  • 5

    Yak Lights

    Posted by Sanka Perera on Sep 6th 2023

    Quality is high! Not a cheap flimsy LED kit like I've used before, holy cow they light up the sky. I can easily fly 3D in pitch black fields. This is a must for those short winter days.

  • 5

    Ultra Halo light kit

    Posted by Anthony Coffey on Sep 3rd 2022

    These are great!!!! Picked this kit up to use on my crack yak XL and they didn’t disappoint!

  • 5

    Very Bright

    Posted by Mark the Great on Oct 9th 2016

    These lights are very bright when using a 3s lipo.

  • 5

    Very bright

    Posted by Nick Samual on Sep 4th 2016

    Didn't think this was going to be as bright as it was. Also very straight forward and well thought out product. This is installed on a 48" Sbach using 4503s. no heat which is a plus for a foamy. Plan to use on my MxS EF model next. Need to make one larger for my 79" slick would be nice.
