Ultra Halo XX0 LED Light Stick Kit – Small

Ultra Halo XX0 LED Light Stick Kit

The Ultra Halo XX0 is our smallest and lightest LED lighting kit, designed for 20–35 inch RC aircraft. It comes fully pre-wired and plug-and-play with a standard servo-style connector, allowing direct connection to your receiver or compatible power source with no soldering required.

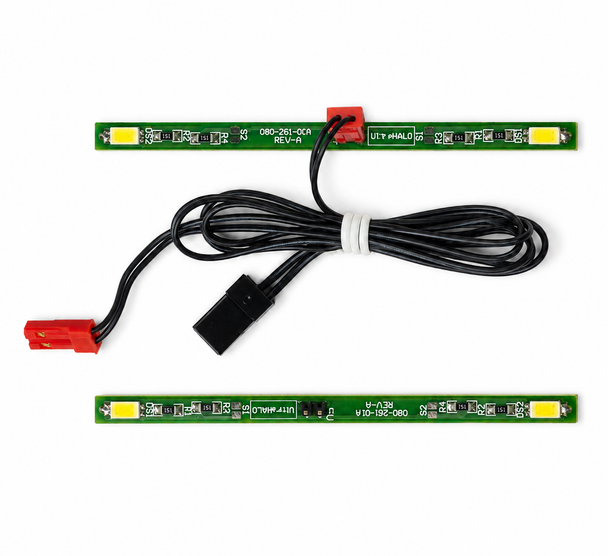

Each light stick features three high-output LEDs, with one facing upward and two facing downward and inward for excellent visibility from multiple angles. The lightweight design delivers exceptional brightness with minimal power consumption.

Manufactured in the USA.

Specifications:

• Recommended aircraft size: 20–35 inch wingspan
• Operating voltage: 4–6V
• Recommended voltage: 5V
• Maximum input voltage: 6V
• Current draw: Approximately 40–60mA per stick
• Current draw at 6V: Approximately 60mA per stick
• Light output: Approximately 100 lumens per stick
• Color temperature: 6500K daylight white
• LEDs: Three per light stick
• Weight: 1.7g per light stick
• Wire harness weight: 2.5g and may be shortened to reduce weight
• Connection: Standard servo-style plug
• Installation: Fully pre-wired with no soldering required

Optional High-Output Mode:

For increased brightness, S1 and S2 may be bridged with a small solder connection to double the light output. At 6V, maximum current draw is approximately 120mA per stick or 240mA for both sticks combined.
