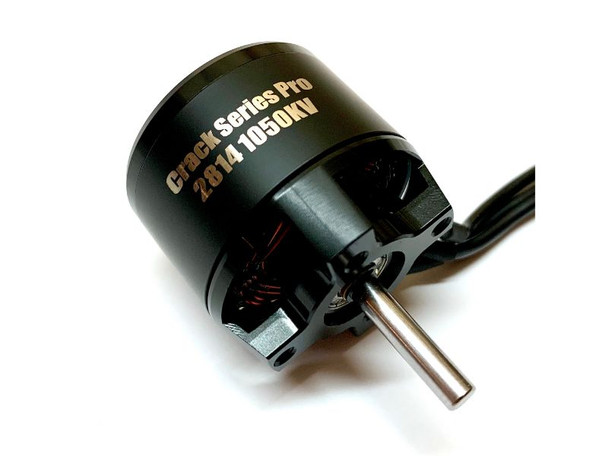

CSP 2814 1050KV 100g Brushless Outrunner Motor
- SKU:
- CSP-2814-1050
- MPN:
- CSP 100g 2814-1050kv
- Bulk Pricing:
- Buy in bulk and save
Description
Crack Series Pro 2814 1050KV 100 g Brushless Motor
The CSP 2814 1050KV outrunner is designed for larger EPP aircraft requiring strong thrust, fast acceleration, and dependable vertical performance without unnecessary motor weight.
Built to Twisted Hobbys specifications, it is a proven match for many 40 to 48-inch aircraft and includes both front and rear propeller-mounting options for flexible installation.
Features and Specifications
- Motor Type: Brushless outrunner
- KV Rating: 1050KV
- Recommended Aircraft: Many 40 to 48-inch models weighing approximately 22 to 32 oz
- Weight: Approximately 90 to 100 g depending on installed mounting hardware
- Case Diameter: 35 mm
- Case Length: 34.1 mm
- Motor Shaft: 4 mm
- Propeller Hub Shaft: 6 mm
- Mounting Pattern: 30.5 x 30.5 mm
- Current: Up to 40A with approximately 65A burst capability
- Power: Approximately 450W rated and up to 650W, depending on setup
- Motor Connectors: Pre-soldered 3.5 mm bullet connectors
Recommended Setups
3S LiPo: 11 to 12-inch propeller. The APC 12 x 4.5 MR is the preferred setup for many compatible Twisted Hobbys aircraft.
4S LiPo: Compatible 10 to 11-inch propeller.
Always confirm current draw and motor, ESC, and battery temperatures when testing a new propeller or battery combination. Actual power and thrust will vary with the complete setup.
Included
- CSP 2814 1050KV brushless motor
- Front and rear propeller-mounting hardware
- Pre-soldered 3.5 mm bullet connectors
- Motor-mounting hardware
Recommended Matching Components
1 Review
-
plenty of good juicy!
Impressed with this little guy first time using the recommended 12x45 prop also very powerful pull out power. I liked how it worked with the alum mount and balanced came out surprisingly spot on for my Yak xl.
