Vertex VX-D4 4g Digital Servo

Vertex VX-D4 4 g Digital Servo

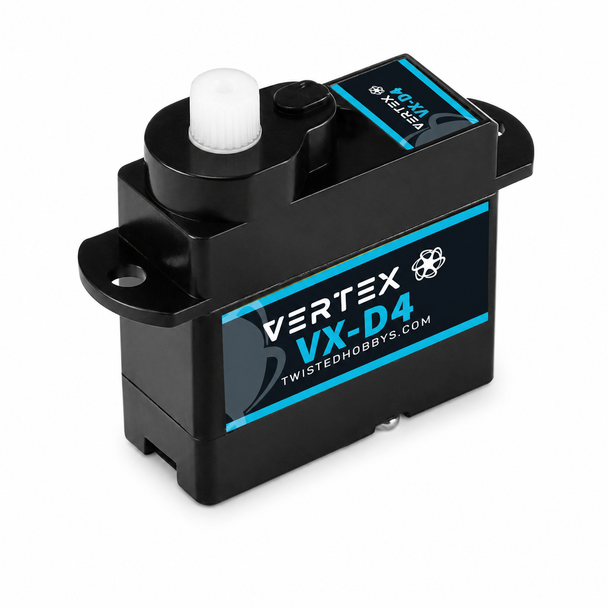

The Vertex VX-D4 is a compact digital servo developed for lightweight indoor and small EPP aircraft where low installed weight and precise control are essential.

Its coreless motor provides quick response and smooth movement, while the lightweight ABS case and plastic gear train keep total weight to approximately 4.3 g including the wire.

Features and Specifications

• Operating Voltage: 3.7 to 5.0V DC
• Stall Torque: At least 0.45 kgf·cm at 4.2V
• No-Load Speed: Less than 0.10 sec/60° at 4.2V
• Weight: 4.3 g ± 0.3 g including wire

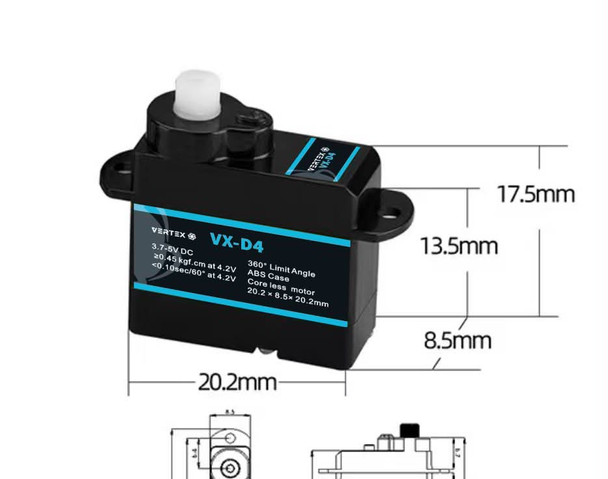

• Dimensions: 20.2 x 8.5 x 20.2 mm
• Case: Lightweight ABS
• Gear Set: Plastic gears
• Motor: Coreless
• Mechanical Limit Angle: 360°
• Wire Length: Approximately 150 mm / 6 inches
• Recommended Applications: Lightweight indoor, competition, and small EPP aircraft

Check all control surfaces and linkages for free movement before flight. Binding or restricted movement may increase current draw and damage the servo.

Included

• One Vertex VX-D4 digital servo
• Plastic servo horns

Compatible Accessories

• CSP-D2/D4/D6 Servo Horn Extension Arms
• RC Factory Small Adjustable End-Link Kit
