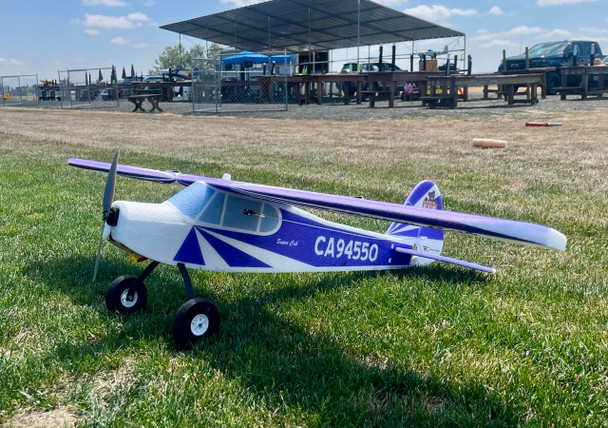

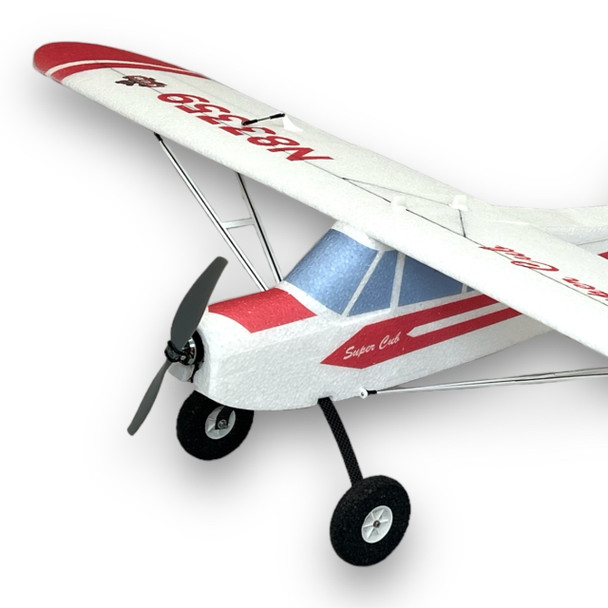

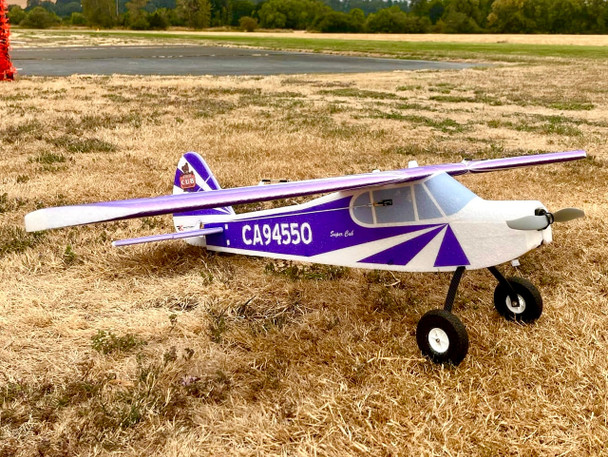

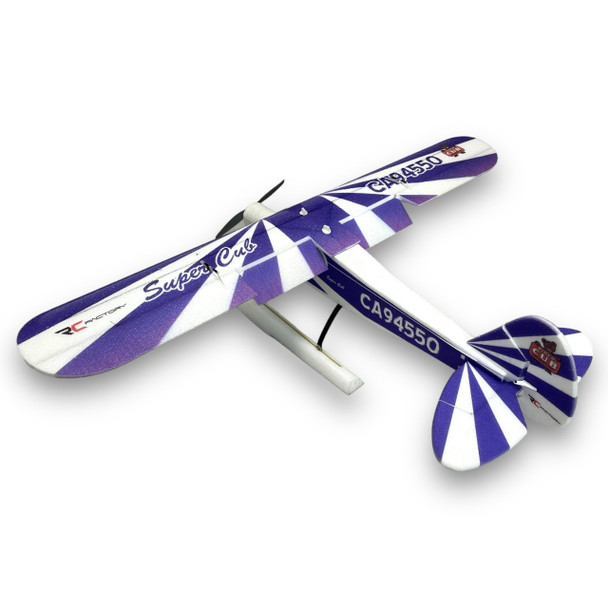

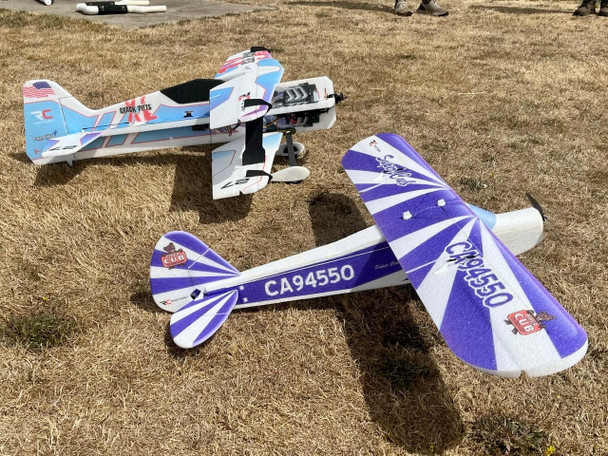

Piper SC: 45-Inch EPP Sport and Bush Flyer

Designed by world-champion pylon racer Jan Sedláček, the Piper SC is a versatile EPP aircraft combining calm, stable handling with the durability and maneuverability needed for everyday outdoor flying.

Its removable wing makes transportation and storage easy, while the carbon-fiber landing gear and large wheels allow takeoffs and landings from paved surfaces or closely mowed grass. The Piper SC can be flown as a relaxed sport model or expanded with optional flaps and floats for even greater versatility.

Features and Specifications

• Wingspan: 45 inches / approximately 1150 mm
• Length: 33 inches / approximately 850 mm
• Estimated Flying Weight: Approximately 12.5 oz / 354 g
• Construction: Durable printed EPP airframe with carbon-fiber reinforcement
• Wing: Easily removable for transportation and storage
• Landing Gear: Lightweight carbon-fiber landing gear with large wheels
• Recommended Battery: 2S or 3S 600 mAh LiPo
• Flight Style: Sport, bush-style and relaxed outdoor flying
• Pilot Level: Beginner to Intermediate

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately. No printed manual is included; a downloadable PDF build manual is available below.

Recommended Matched Power System

View the Piper SC PC08 Matched Power System

2S Setup: 600 mAh LiPo with a 9 x 4.7 Slow Fly propeller.

3S Setup: 600 mAh LiPo with a compatible 8-inch Slow Fly propeller.

PC08 Power System Includes

• CSP-2305 1500KV brushless motor
• BOLT 16A ESC
• Four CSP-D10M digital metal-gear servos
• 9 x 4.7 Slow Fly propeller for the recommended 2S setup

Important: The included 9 x 4.7 propeller is intended for 2S operation. Use a compatible 8-inch propeller when operating the matched power system on 3S.

Additional Required Items

• 4-channel or greater transmitter and compatible lightweight receiver
• 2S 600 mAh LiPo battery or 3S 600 mAh LiPo battery
• LiPo-compatible balance charger
• Foam-Tac and thin CA glue

Optional Upgrades and Accessories

• View the Piper SC Flap Kit – Requires two additional CSP-D10M servos

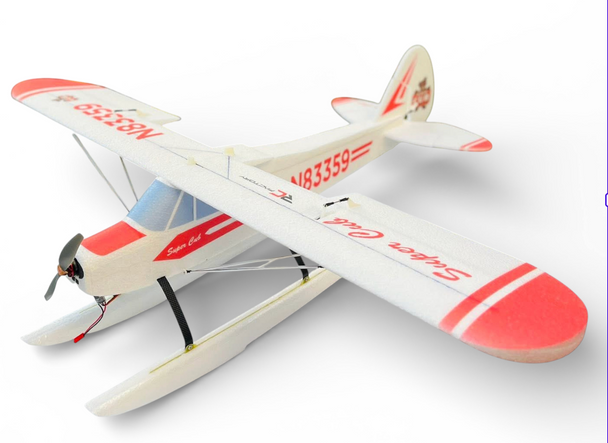

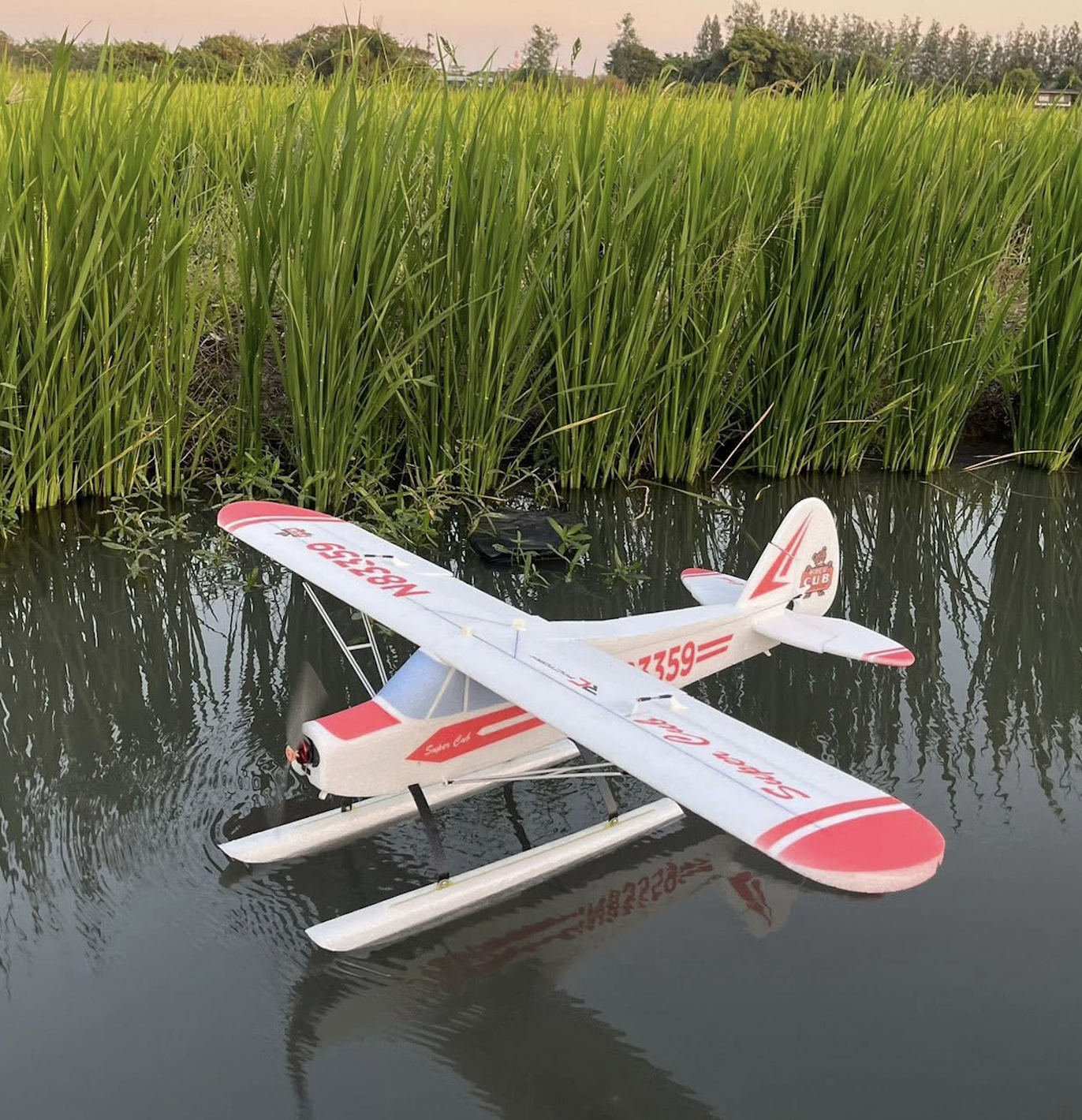

• View the Piper SC and Step 2 Float Kit
• Watch the Piper SC Float Flight Video

Build Resources and Replacement Parts

• View the Piper SC PDF Build Manual
• Visit the Official RC Groups Build Thread and Discussion
• View the Piper SC Replacement Hardware Bag
• View the Piper SC Replacement Landing Gear
