HM 39" EPP Sukhoi SU-35th

HM 39" EPP Sukhoi SU-35th

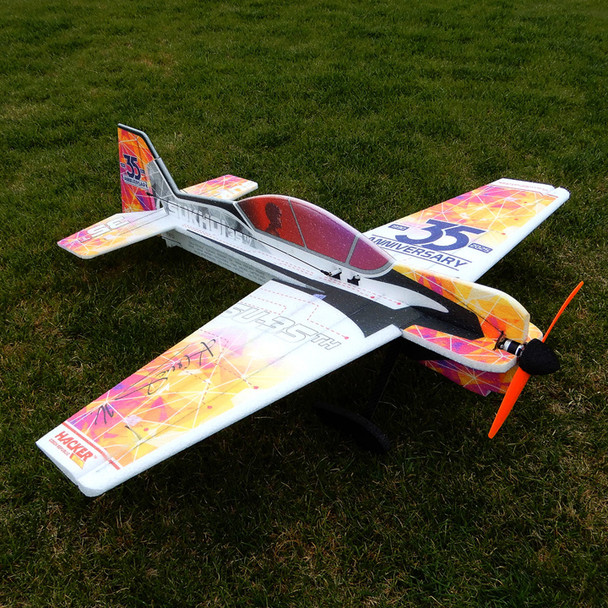

Created to celebrate Hacker Model Production’s 35th anniversary, the SU-35th is a limited-edition EPP aerobatic model inspired by the legendary SU-29. It combines a strong carbon-reinforced fuselage, precision-milled components, and excellent maneuverability in a durable 39" airframe.

Oversized ailerons, refined control surfaces, and redesigned landing gear give the SU-35th strong aerobatic performance, improved takeoff handling, and a wide flight envelope for both airfield flying and smaller flying areas.

Features and Specifications

• Wingspan: 39 inches / 1000 mm
• Estimated Flying Weight: Approximately 375 to 390 g, depending on equipment
• Construction: Printed EPP with carbon-fiber reinforcement
• Airframe: Limited-edition 35th anniversary aerobatic design inspired by the SU-29
• Control Surfaces: Oversized ailerons and refined control surfaces for strong maneuverability
• Landing Gear: Redesigned gear for improved takeoff and ground handling
• Recommended Battery: 3S 850 mAh LiPo with XT30 connector, 25C or higher, with 25C to 60C burst maximum recommended for this system
• Flight Style: Sport aerobatics, precision flying, freestyle, and aggressive 3D
• Pilot Level: Intermediate to Advanced

Required to Complete

This is an airframe kit. The recommended power system, radio equipment, battery, charger, adhesive, and spinner are sold separately. No printed manual is included; downloadable PDF resources are available below.

3S Setup: Use a 3S 850 mAh LiPo with XT30 connector and the recommended PC11 power system. A 25C or higher pack is recommended, with 25C to 60C burst maximum being a good range for this setup.

PC11 Power System Includes

• CSP 2213 1100KV brushless motor
• BOLT 22A ESC with XT30 connector
• Four CSP-D14M digital metal-gear servos
• 10 x 4.7 Slow Fly propeller

Important: Always confirm proper CG, control direction, motor direction, and ESC throttle calibration before flight. Remove the propeller before throttle calibration or ESC setup.

Additional Required Items

• 4-channel or greater transmitter and compatible lightweight receiver
• 3S 850 mAh LiPo battery with XT30 connector
• LiPo-compatible balance charger
• Foam-Tac and CA glue as specified during assembly

Build Resources and Compatible Parts

• View the Hacker Models SU-35th PDF Manual
• View the SU-35th RC Groups Build Discussion
• Shop Compatible 37 to 39-Inch Replacement Parts
• Shop Upgrade Parts
• View Compatible LED Lighting Kits
