Name: Power Combo 3D/4D Competition (4 Servos)
SKU: PP4-A
Price: 156.99 USD
Availability: InStock

Power Combo 3D/4D Competition (4 Servos)

(No reviews yet) Write a Review

SKU:

PP4-A

Description
Videos
0 Reviews

Description

This professionally matched four-servo competition power system is developed for the MadBull, PittsBull, LiL Fokker, Rextra 260, Jungmeister, and similar lightweight EPP aircraft. It provides fast throttle response, precise control, and transmitter-controlled reverse thrust for advanced 4D flight. Choose between the lightweight PP4-A servo package and the high-speed PP4-B servo package, then bundle and save with a proven system that costs less than purchasing the components individually.

3D/4D Competition System Overview

Two Servo Package Options

System

Competition 3D/4D

Servo Options

PP4-A or PP4-B

Motor

VS28-05C 1950KV

ESC

V17R 17A Reversible

Battery

2S / 3S 600 mAh

Flight Modes

3D / Reversible 4D

Choose Your Servo Package

Select PP4-A

Lightweight PP4-A Servo Package

4 × CSP-D6M 5.5 g Digital Metal-Gear Servos

Choose PP4-A for four matching lightweight digital servos that minimize installed weight while providing precise four-servo control.

Select PP4-B

High-Speed PP4-B Servo Package

4 × Vertex VX-SV10D 10 g High-Speed Servos

Choose PP4-B for four matching high-speed digital servos with CNC-machined aluminum cases, metal gears, and rapid control response.

Purchase Selection: Choose either PP4-A or PP4-B from the product’s Type menu before adding the system to your cart. The package includes only the selected four-servo set, not both servo options.

Traditional 3D and Reversible 4D Performance

Use the system as a responsive forward-only 3D setup or configure transmitter-controlled reverse thrust for advanced 4D maneuvers. Both servo choices include the same matched 1950KV motor, reversible ESC, and 3D and 4D propellers.

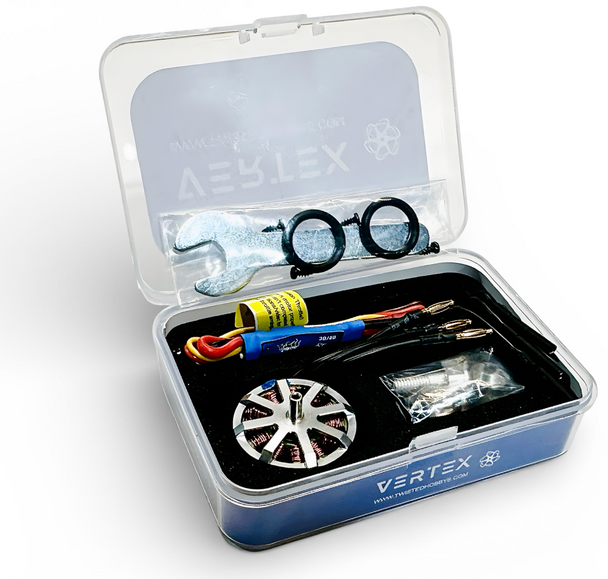

Included With Either Servo Option

1 ×

Vertex VS28-05C 1950KV Motor

High-RPM reversible brushless outrunner

1 ×

Vertex V17R 17A Reversible ESC

6V / 3A switching BEC

1 ×

APC 8 × 3.7 SFR 4D Propeller

5 mm hub for reversible 4D flight

1 ×

3D Propeller

APC 8 × 4.1 3D or GWS 8 × 4 DD

Additional Items Required

Airframe

Compatible four-servo EPP aircraft

Flight Battery

2S or 3S 600 mAh LiPo

Radio System

Programmable transmitter and compatible lightweight receiver

Charger

LiPo-compatible balance charger

Airframe, battery, receiver, transmitter, charger, and adhesives are not included.

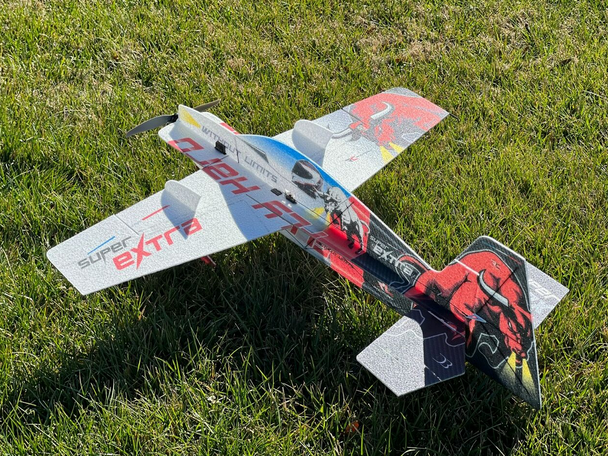

Aircraft Compatibility: Recommended for the MadBull, PittsBull, LiL Fokker, Rextra 260, Jungmeister, and similar four-servo EPP aircraft. The system may also be used in the Extra NG, although these servos are smaller than those included in its standard matched power system.

No Low-Voltage Cutoff: The V17R does not provide low-voltage cutoff protection. Use a flight timer and monitor battery voltage to prevent excessive LiPo discharge.

Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.

Setup Resources

V17R ESC Manual 3D/4D Radio Setup Video
