Power Combo Super Lite Series (A)

(3 reviews) Write a Review
SKU:
PC04
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
  • Power Combo Super Lite Series (A)
MSRP: $155.94
$132.99
— You save $22.95

Sold Out

Description

The PC04 is a professionally matched lightweight power system developed for Twisted Hobbys Super Lite and select indoor EPP aircraft. EBundle and save with a proven package that costs less than purchasing the components individually.

PC04 System Overview
2S / 3S Super Lite Power System
System
PC04
Motor
2203 1800KV / 18 g
ESC
Vertex 16A
BEC Output
6V / 3A SBEC
Battery
2S / 3S 350–450 mAh
Included Propeller
8 × 4.3 for 2S
Developed for Super Lite Performance
The lightweight motor, 16A ESC, and mixed 5 g and 9 g servo layout provide the low installed weight and precise control needed for Super Lite and compatible indoor EPP aircraft.

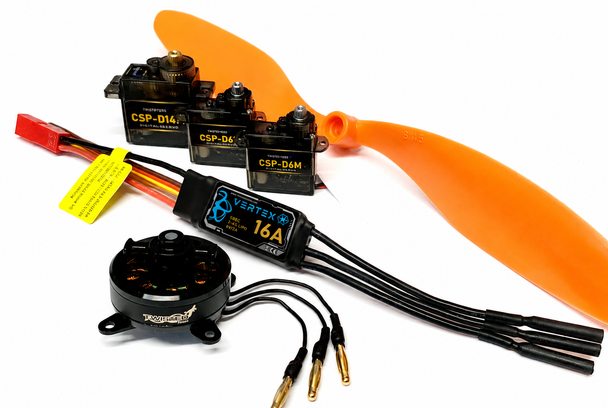

Included in the PC04 Package
1 ×
Lightweight 18 g outrunner
1 ×
6V / 3A switching BEC
1 ×
9 g servo for aileron control
2 ×
For elevator and rudder control
1 ×
Included for the recommended 2S setup
Additional Items Required
Airframe
Compatible Super Lite or lightweight EPP aircraft
Flight Battery
2S or 3S 350 to 450 mAh LiPo
Radio System
4-channel or greater transmitter and compatible lightweight receiver
Airframe, battery, receiver, transmitter, charger, adhesives, and the 3S propeller are not included.
Battery and Propeller Recommendation: For 2S operation, use a 350 to 450 mAh LiPo with the included 8 × 4.3 propeller. For 3S operation, use a 350 to 450 mAh LiPo with a compatible 6 to 7-inch propeller. The included 8 × 4.3 propeller is intended for 2S operation and should not be used on 3S.
Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.
