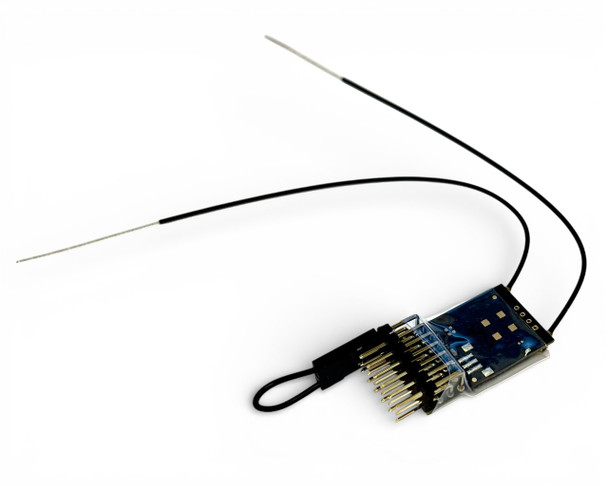

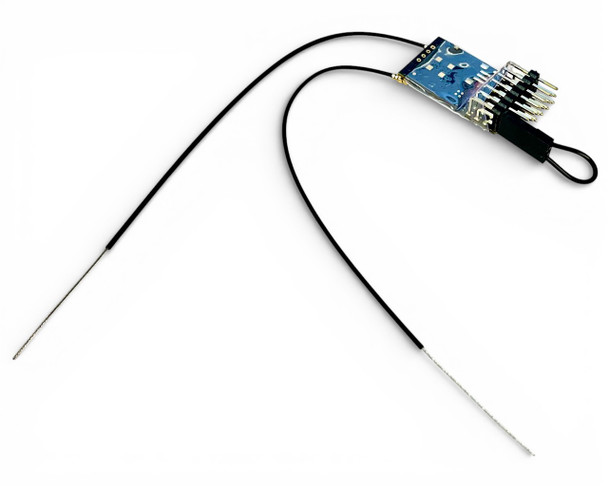

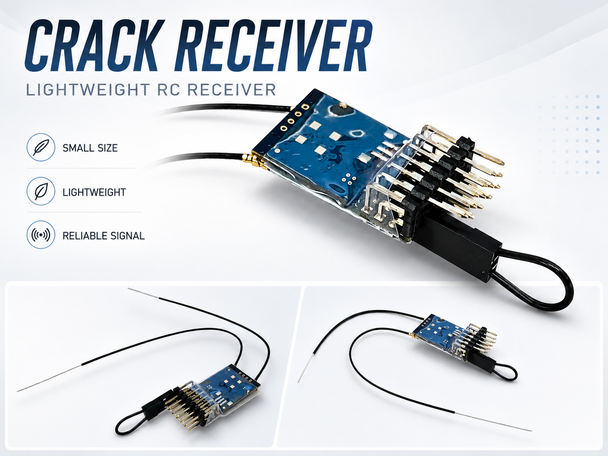

Receiver Micro 6Ch DSMX/DSM2 CRACK PRO 2.4Ghz Spectrum w/ Diversity Antenna
- SKU:
- 2.4g CSP 6ch DSMX/DSM2
- Bulk Pricing:
- Buy in bulk and save
Description
Newest Crack Series Pro 6ch Micro DSM2/DSMX has become the perfect micro receiver for all small to mid size aircraft needs. Full range receiver with diversity antenna(s) is our highest quality micro ultra light weight receiver for the pilot wanting the best signal required.
New update! Updated circuit board with Fail Safe auto setup functionality. No need for buttons or setup mode to program you fail safe. Plug & go! After 2 seconds failsafe will be activated and channels will be moved to their default position.
Features:
6-channel park flyer receiver
Quick Connect™ with Brownout Detection
Red LED indicates number of holds
Diversity dual antenna(s) with independent processor for monitoring signal on both antennas
New duel Diversity Antenna(s) extended for carbon fuselage / metallic structure installation and better signal
Auto Fail Safe on start up!
Specs:
Micro-lite Park Flyer Receiver
6 Channels
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4GHz
Length: 29mm, Width: 19mm, Height: 11mm
Weight: 4.1 g
Voltage Range: Input: 3.5–8.5V

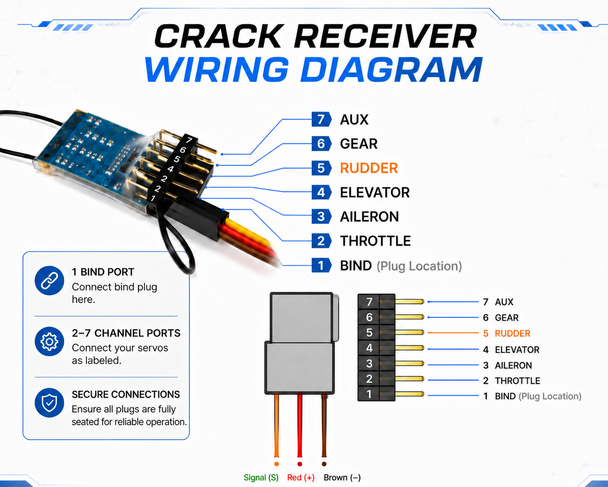

Bind plug and port guild reference included
PVC shrink tubing in Black or Clear film to protect from oil, grease or dirt.
Failsafe features built in setup: "Upon successful binding and when the receiver's LED indicates a signal is received, the receiver records the current values of all channels. If the signal is lost for more than 2 seconds, these recorded values will be replayed."
Binding Procedure:
1) Plug bind plug to the receiver.
2) Provide power to the unit. LED flashes quickly.
3) Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4) Remove bind plug and store away for later binding.
* Bind Sensitivity & Issues for NX8, NX6, NX10 & IX14 or similar new radio's, these may require father distance apart when binding (we have seen up to 30' apart). We suggest trying this further distance when binding till we can revise sensitivity for these newer radios.
Notes:
This is not a Spektrum DSMX or DSM2 product, nor is it a copy of a Spektrum DSM2 or DSMX product. Crack Series Rx are tested to be compatible with Spektrum's DSMX and or DSM2 only protocol products. Not compatible with: JR DMSS or other different radio brand protocols.
