Power Combo Laser 200, SUPER EXTRA, Giles 202 3D/4D
- SKU:
- PC05 4D
Description

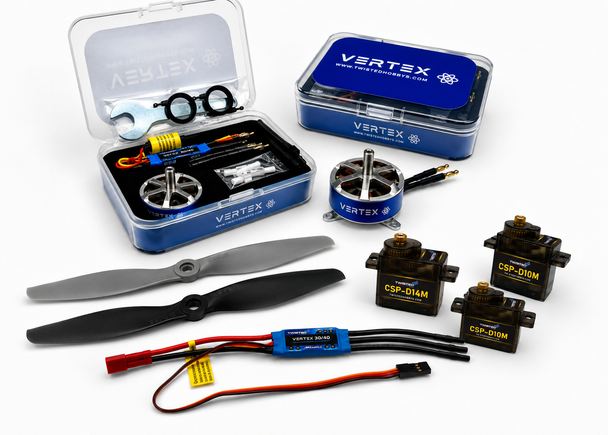

The PC05 4D is a professionally matched high-output power system. It provides responsive traditional 3D performance together with transmitter-controlled reverse thrust for advanced 4D flight. Bundle and save with a proven motor, ESC, servo, and propeller package that costs less than purchasing the components individually.
Matched for the Laser 200, Super Extra and Giles 202
The high-output 1950KV motor, reversible ESC, three-servo control package, and dedicated 3D and 4D propellers are matched for these lightweight 34-inch performance airframes.
Battery and Propeller Recommendation: Use a 2S or 3S 450 to 600 mAh LiPo battery. Install the included 3D propeller for conventional forward-only flight or the included APC 8 × 3.7 SFR propeller and matching 5 mm hub for reversible 4D operation.
High-Output 4D System: Reversible operation produces substantial thrust and places greater loads on the airframe than conventional 3D flight. Use the 4D configuration only with a compatible airframe and the correct propeller and hub.
No Low-Voltage Cutoff: The V17R does not provide low-voltage cutoff protection. Use a flight timer and monitor battery voltage to prevent excessive LiPo discharge.
Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.
Compatible Aircraft and Setup Resources
