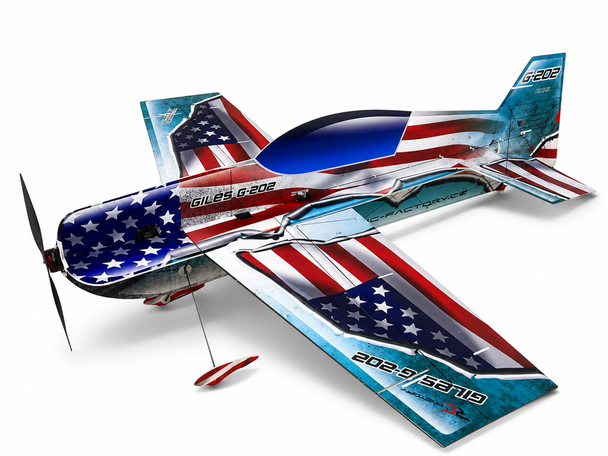

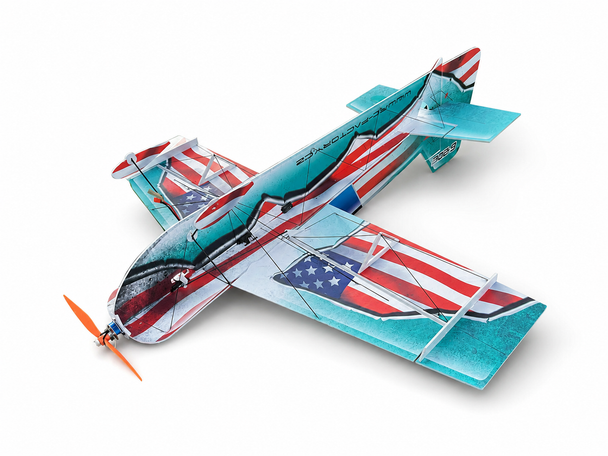

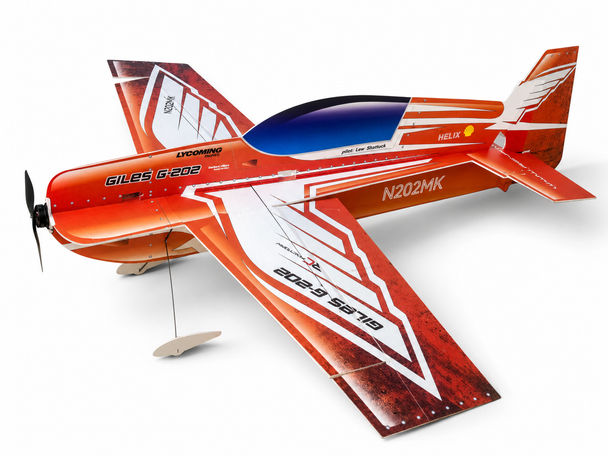

RCF 34" GILES 202 - FLEXI-FOAM

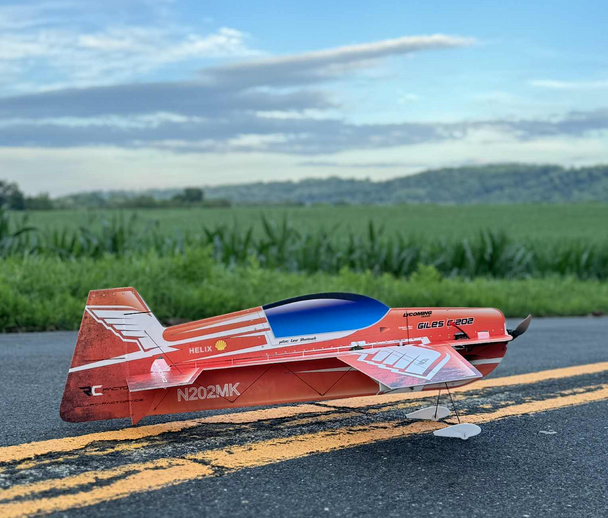

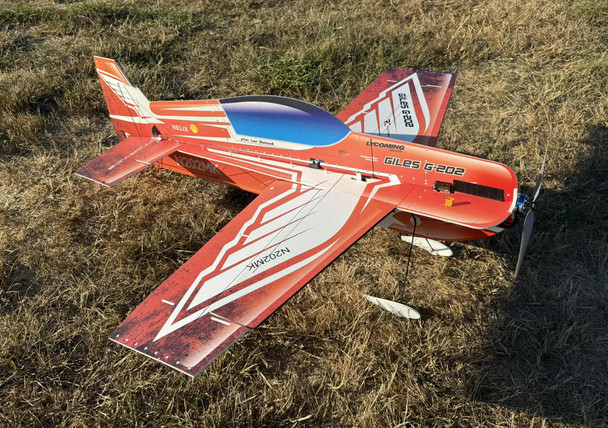

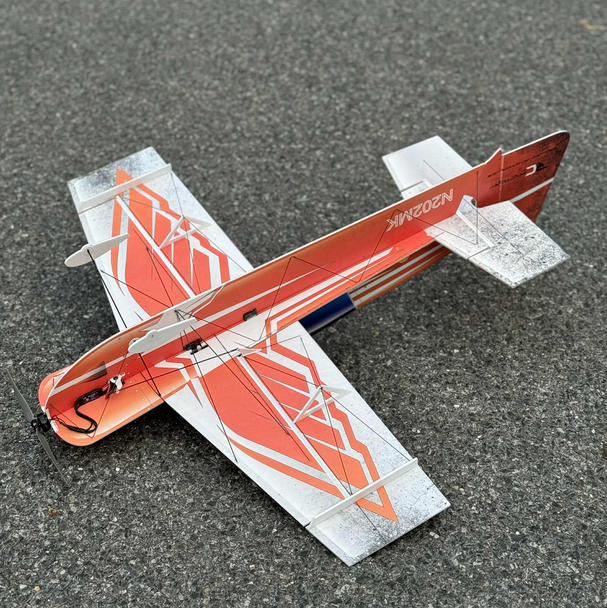

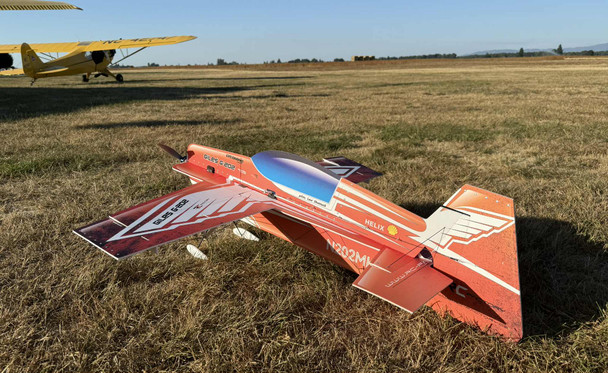

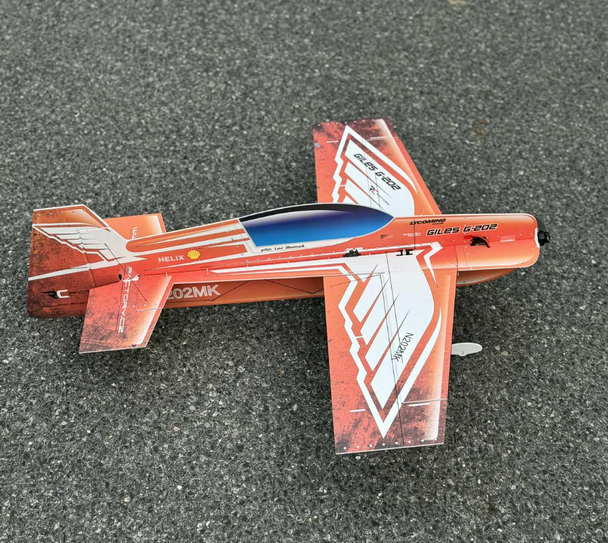

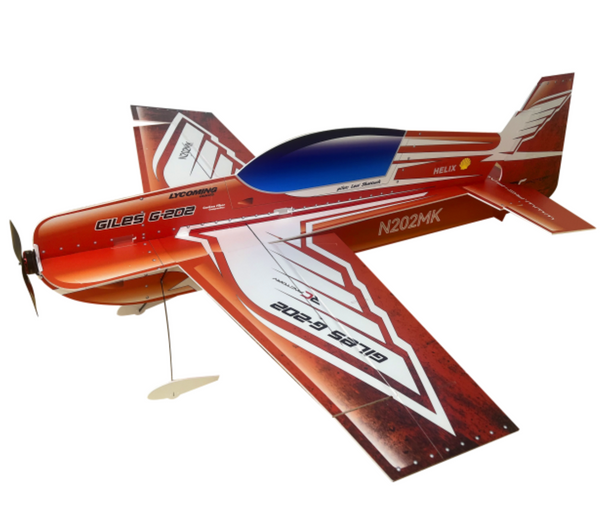

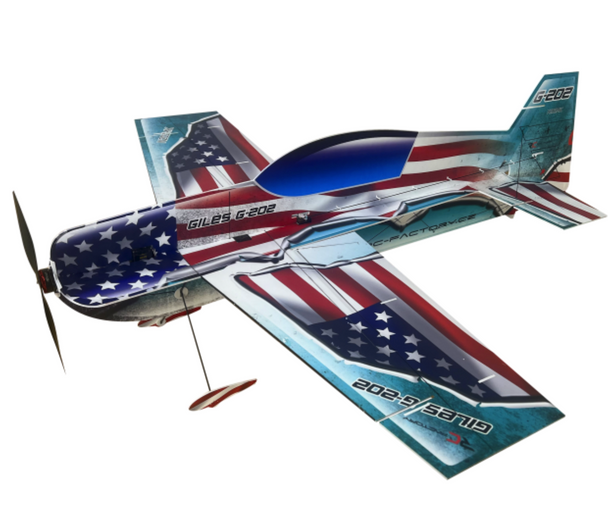

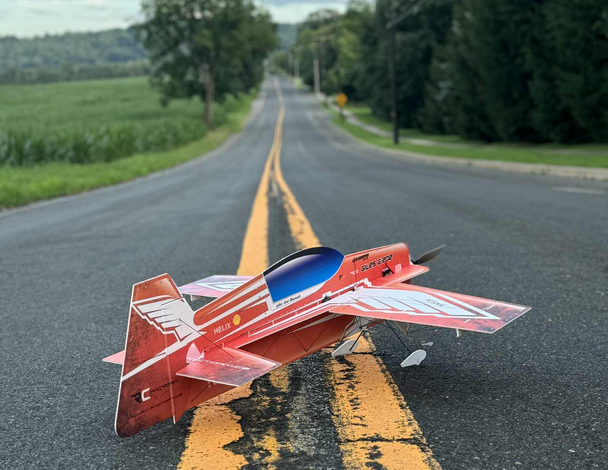

Giles G-202: 34-Inch Flexi-Foam Aerobatic Aircraft

The Giles G-202 is a precision aerobatic profile aircraft constructed from RC Factory’s innovative Flexi-Foam material. Its smooth and rigid surface provides crisp flight characteristics while offering greater flexibility and resistance to normal flight damage than traditional Depron-style foam.

The swept-wing design delivers stable tracking and quick control response for precision aerobatics, aggressive 3D flying, and optional reversible 4D performance.

Features and Specifications

• Wingspan: 875 mm / 34.4 inches
• Length: 915 mm / 36 inches
• Estimated Flying Weight: 180 to 210 g / 6.3 to 7.4 oz
• Construction: Smooth and rigid 3 mm Flexi-Foam with carbon-fiber reinforcement
• Design: Swept wing for stable tracking and responsive aerobatic control
• Recommended Battery: 2S or 3S 600 mAh LiPo
• Power Compatibility: Standard 3D or reversible 4D operation
• Flight Style: Precision, freestyle, 3D, and 4D aerobatics
• Pilot Level: Intermediate to Advanced
• Builder Level: Experienced

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately. No printed manual is included; a downloadable PDF build manual is available below.

Power-System Components and Servo Options

• Motor: Vertex VS28-05C 1950KV reversible motor
• ESC: Vertex 17A 3D/4D reversible ESC
• 3D Propeller: APC 8 x 4.1 Slow Fly propeller
• 4D Propeller: APC 8 x 3.7 SFR reversible propeller
• PC CSP3 Servo Option: One CSP-D10M and two CSP-D6M digital metal-gear servos
• PC VX3 Servo Option: Three Vertex VX-SV10D high-speed metal-case and metal-gear servos

Additional Required Items

• 4-channel or greater transmitter and compatible lightweight receiver
• 2S or 3S 600 mAh LiPo battery
• LiPo-compatible balance charger
• Foam-Tac for the main assembly and thin CA glue for the carbon-fiber reinforcement

Build Resources and Replacement Parts

• Watch the Giles G-202 Build Video
• View the Giles G-202 PDF Build Manual
• Visit the Official RC Groups Build Log and Discussion
• Shop Compatible 32 to 34-Inch Replacement Parts
