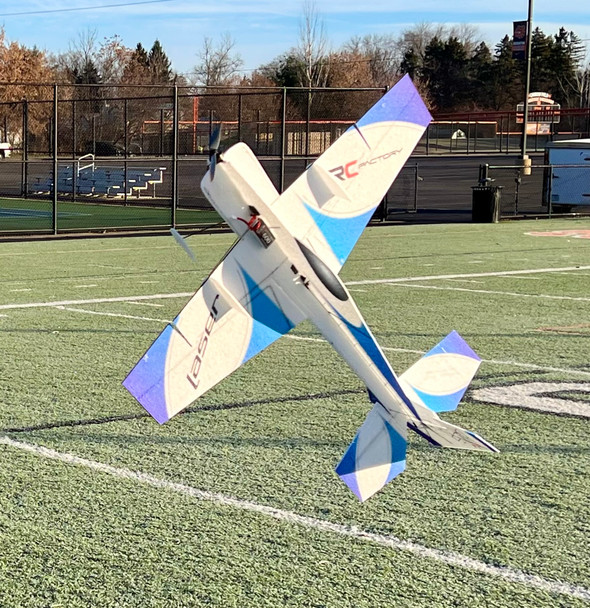

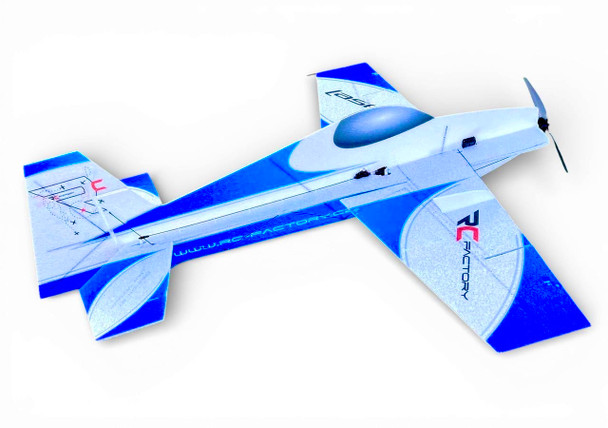

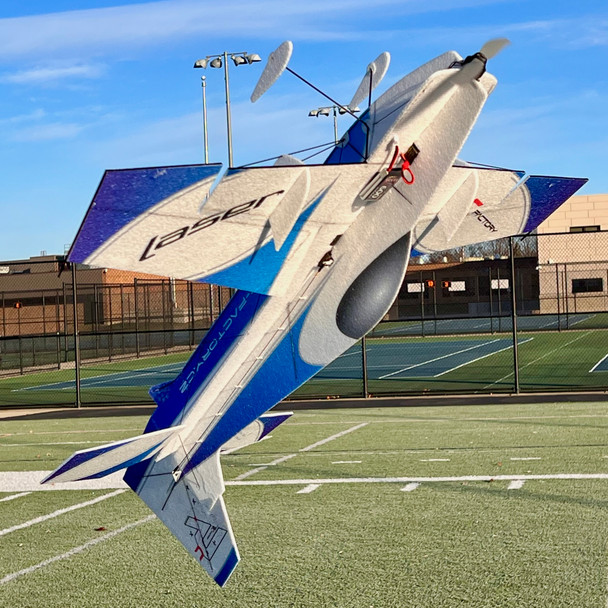

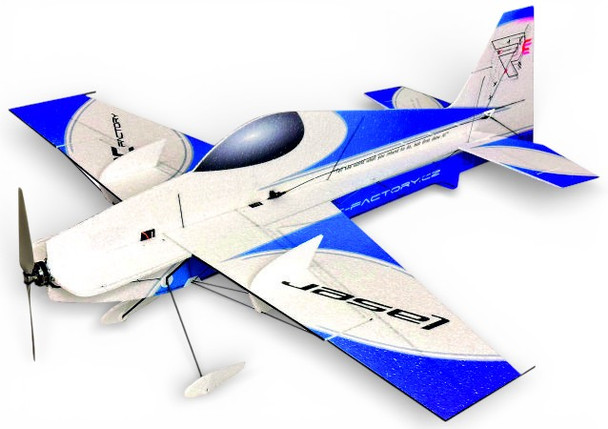

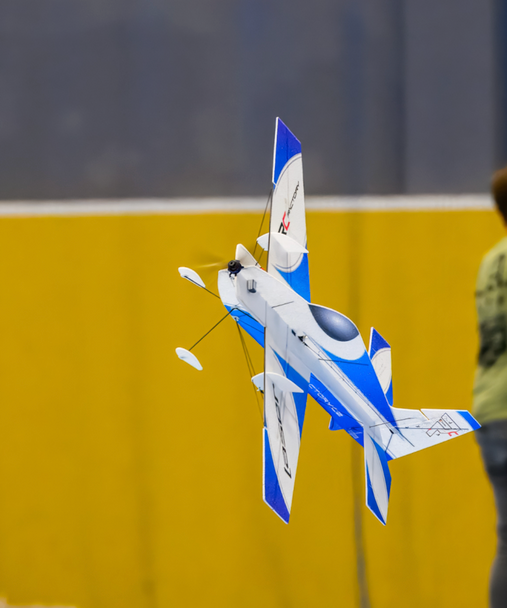

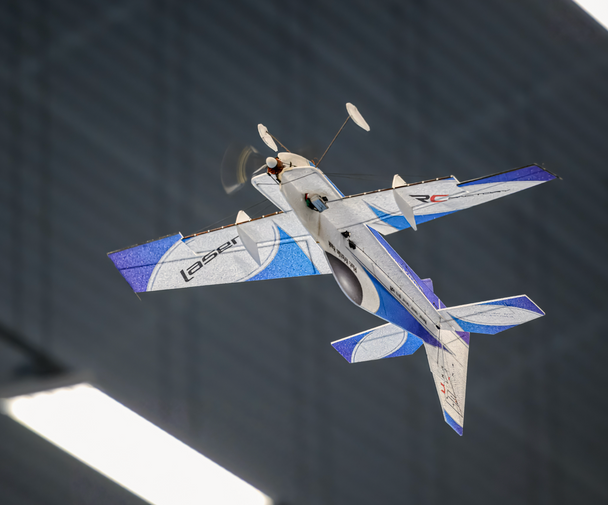

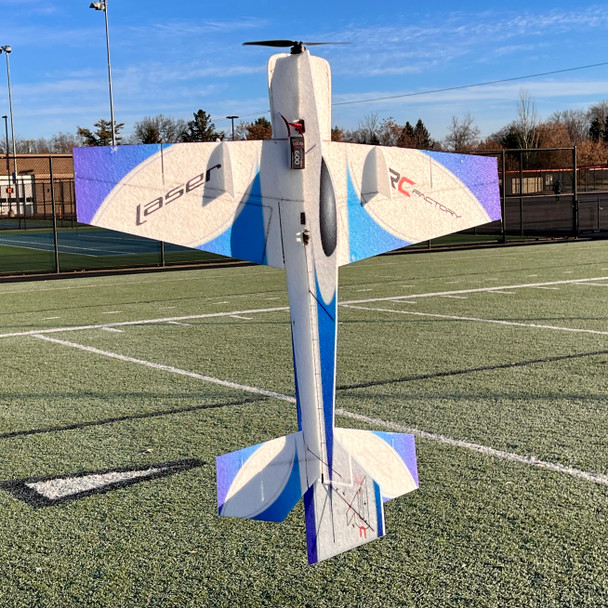

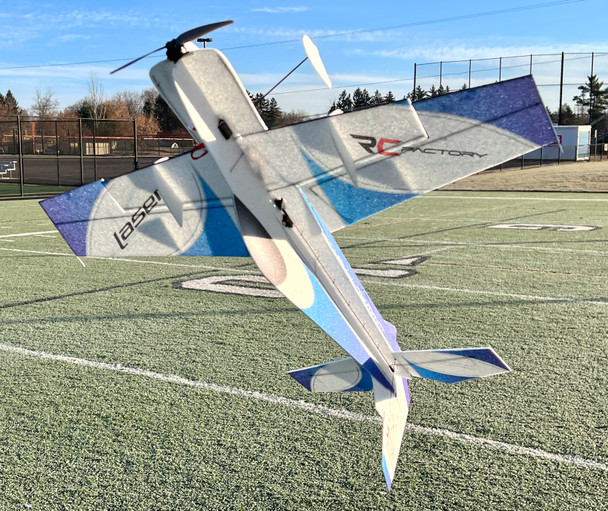

TH 34" EPP Laser 200 Super Lite

TH 34" EPP Laser 200 Super Lite

Designed by Jan Votava and Jan Sedlacek, the Laser 200 Super Lite combines lightweight EPP construction with the rigidity and control authority required for aggressive indoor freestyle and advanced 3D aerobatics.

Oversized, torsionally reinforced ailerons provide an exceptional roll rate, while the full-flying stabilizer allows tight loops and rapid rotations around the aircraft’s center of gravity.

Features and Specifications

• Designers: Jan Votava and Jan Sedlacek
• Wingspan: 855 mm / 33.7 inches
• Length: 935 mm / 36.8 inches
• Estimated Flying Weight: 155 to 175 g / 5.5 to 6.2 oz
• Construction: Lightweight printed EPP with extensive carbon-fiber reinforcement
• Control Surfaces: Oversized reinforced ailerons and a full-flying stabilizer
• Recommended Battery: 2S or 3S 450 to 600 mAh LiPo
• Power-System Compatibility: Standard 3D or reversible 4D
• Flight Style: Indoor freestyle, advanced aerobatics, 3D, and 4D
• Flying Environment: Indoor facilities or calm outdoor conditions
• Pilot Level: Intermediate to Advanced

Required to Complete

This is an airframe kit requiring assembly. The power system, radio equipment, battery, charger, and adhesives are sold separately. No printed manual is included; a downloadable PDF manual is available under Build Resources below.

Matched Power-System Components

• Vertex VS28-05C 1950KV 3D/4D motor
• Vertex 17A switchable 3D/4D reversible ESC
• One CSP-D14M digital metal-gear servo
• Two CSP-D10M digital metal-gear servos
• APC 8 x 4.1 slow-fly propeller for standard 3D flight
• APC 8 x 3.7 SFR reversible propeller for 4D flight

The reversible power system is heavier and produces substantial thrust. Always install the correct propeller and matching motor hub for the selected 3D or 4D operating mode.

Additional Required Items

• Compatible 4 to 6-channel transmitter and lightweight receiver
• 2S or 3S 450 to 600 mAh LiPo battery
• LiPo-compatible balance charger
• Foam-Tac, thin CA, and medium CA adhesive

Build Resources and Compatible Parts

• Download the Laser 200 PDF Build Manual
• Watch the Laser 200 Build Video
• Shop Compatible 32 to 34-Inch Replacement Parts
• Shop Compatible 4D Reversible Propellers

We recommend Foam-Tac for the main EPP assembly and thin or medium CA where specified for carbon-fiber reinforcement and hardware connections.
