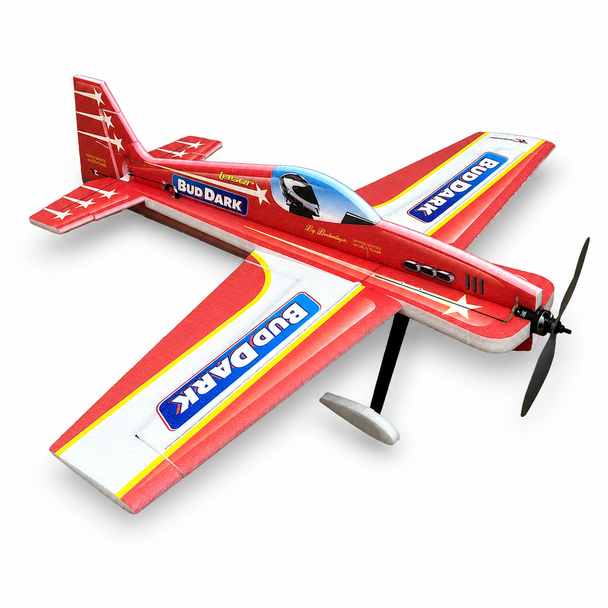

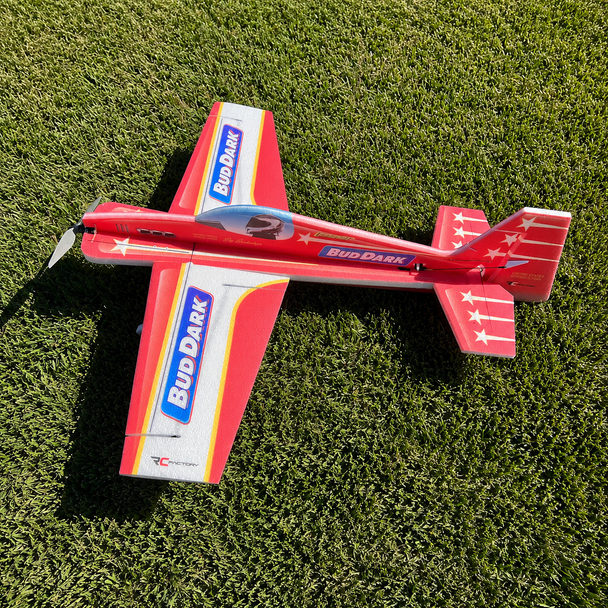

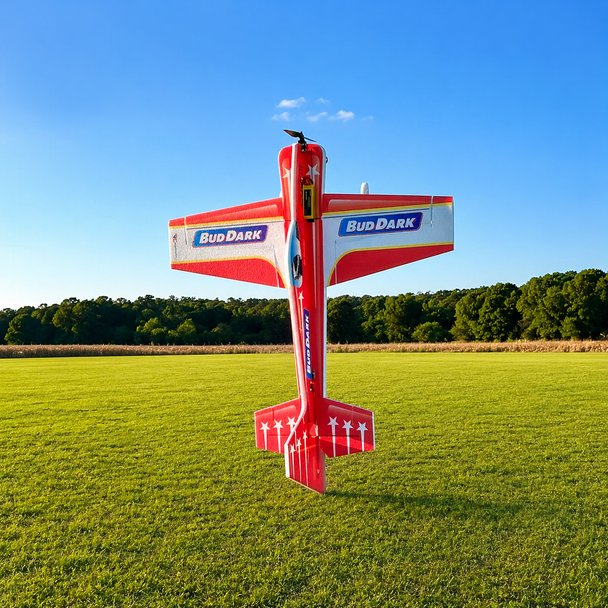

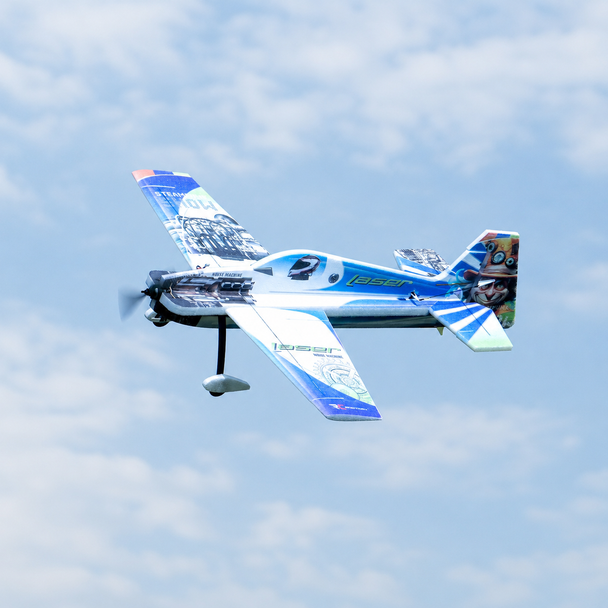

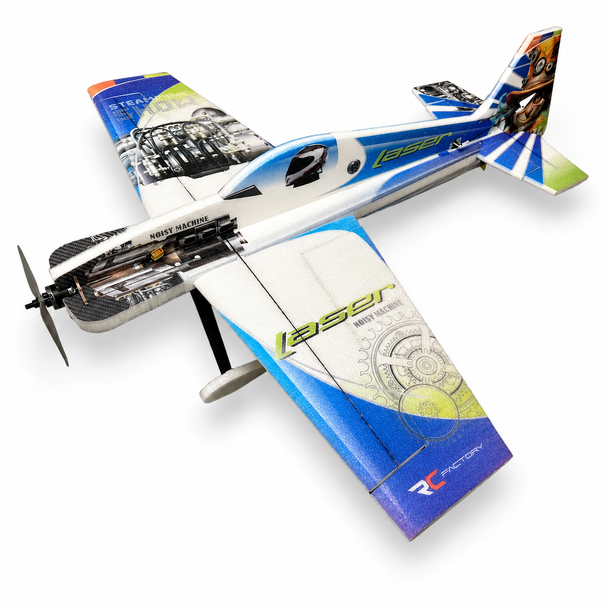

TH 42" EPP Laser XL

TH 42-Inch EPP Laser XL: Large Precision and 3D Aircraft

The Laser XL combines the presence and energy of a larger aerobatic aircraft with the durability and repairability of EPP construction. It offers precise tracking, strong control authority, and excellent stability for outdoor precision aerobatics and advanced 3D flying.

The wing is bonded along its full contact area to the fuselage spine for increased strength. Counterbalanced aileron tips improve control response while reducing servo load, and the conventional hinged elevator provides dependable pitch authority with excellent durability.

Key Features

• Lightweight and durable EPP foam construction
• Reinforced wing attachment along the full fuselage contact area
• Counterbalanced aileron tips for responsive roll control
• Conventional hinged elevator designed for strength and durability
• Stable outdoor handling with strong control authority
• Designed for precision aerobatics and aggressive 3D flying

Specifications

• Wingspan: 42 inches / 1060 mm
• Length: 43 inches / 1120 mm
• Estimated Flying Weight: Approximately 27 to 30 oz / 765 to 850 g
• Recommended Battery: 3S 1500 to 2200 mAh LiPo
• Construction: Reinforced lightweight EPP foam airframe
• Pilot Level: Intermediate to Advanced

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately and listed below. No printed manual is included; a downloadable PDF build manual is available under Build Resources.

Matched Power-System Components

• Motor: CSP 2814 1050KV 100 g brushless motor
• ESC: BOLT 45A ESC
• Servos: Four CSP-D18M digital metal-gear servos
• Preferred 3S Propeller: APC 12 x 4.5MR

Additional Required Items

• Radio System: 4 to 6-channel transmitter and a compatible lightweight receiver
• Battery: 3S 1500 to 2200 mAh LiPo preferred, or 4S 1500 to 2200 mAh LiPo for the alternative setup
• Charger: LiPo-compatible balance charger
• Adhesive: Foam-Tac or a similar foam-safe adhesive, with CA glue used where specified in the manual

Build Resources, Upgrades and Compatible Parts

• View the Laser XL PDF Build Manual
• Watch the Laser XL Build Video
• Visit the Laser XL RC Groups Build Discussion
• Shop Laser XL Replacement Parts
• Shop Compatible Upgrade Parts
• View the Compatible Ultra Halo XX1 LED Lighting Kit
