Description

The PC17 is a professionally matched power system developed specifically for 39–48-inch EPP aircraft. Every component is selected to work together for responsive power, precise control, reliable operation, and straightforward installation. Bundle and save with a proven package that costs less than purchasing the components individually.

PC17 System Overview

3S / 4S Max Power System

System

PC17

Motor

CSP 2814 1050KV

ESC

BOLT 45A

BEC Output

6V / 6A SBEC

Battery

3S / 4S 1500–2200 mAh

Included Propeller

APC 12 × 4.5 MR

Choose Your Servo Package

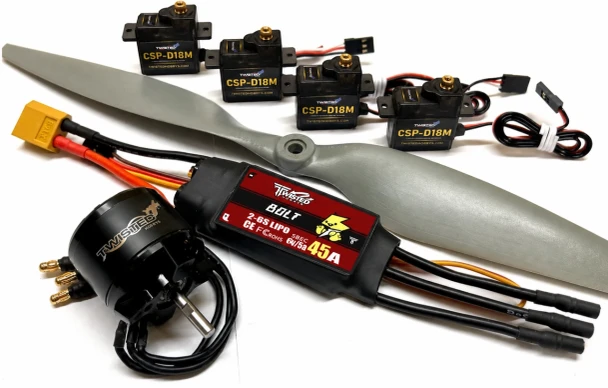

CSP Package

CSP Option

4 × CSP-D18M Digital Metal-Gear Servos

Lightweight 18 g servos operating from 4.8V to 6V.

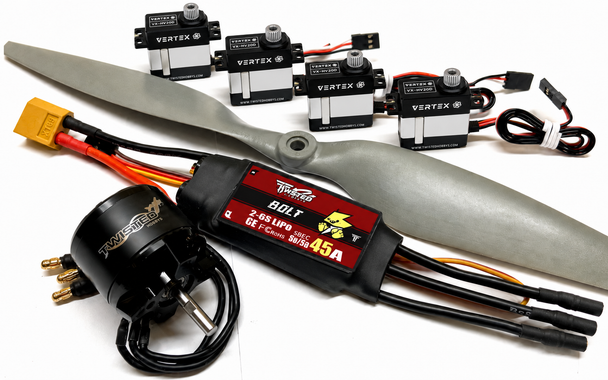

Vertex VX-HV Package

VX-HV Option

4 × Vertex VX-HV20D Metal-Case Servos

Premium 20 g metal-case, metal-gear servos capable of 6V to 8.4V operation.

Included with Either PC17 Package

1 ×

CSP 2814 1050KV Brushless Motor

90–100 g outrunner for compatible 39–48-inch aircraft

1 ×

BOLT 45A Brushless ESC

45A continuous, 65A burst, with 6V / 5A switching BEC

1 ×

APC 12 × 4.5 MR Propeller with Hub Rings

Included for the recommended 3S setup

Your selected package also includes four CSP-D18M or four Vertex VX-HV20D servos. Product images may vary as components are updated; refer to the selected option and component descriptions for exact package contents.

Matched for Select 39–48-Inch Aircraft

The PC17 is intended for the compatible larger EPP aircraft listed below. Final battery and propeller selection should match the specific airframe and desired performance.

Shop Compatible Aircraft

TH 43-Inch Crack Yak-55 XL V2 TH 42-Inch Edge 540 XL TH 42-Inch Veloxity RC Factory 42-Inch Laser XL VA-Model 40-Inch Fokker Dr.1 V2

Also Compatible

HM Ultimate 3D 1000, MX2, Super Zoom XL, Supreme and Edge 540

VX-HV Installation Note: When selecting VX-HV20D servos for the Crack Yak-55 XL or Laser XL, the MP Jet Ball Link Kit is recommended. The Edge 540 XL and Veloxity include compatible ball links.

Additional Items Required

Airframe

Select a compatible aircraft

Flight Battery

3S or 4S 1500 to 2200 mAh LiPo

3S 1500 | 3S 1800 | 3S 2200 | 4S 1500

Radio System

4-channel or greater transmitter and compatible receiver

Charger

LiPo-compatible balance charger

Airframe, battery, receiver, transmitter, charger, adhesives, a 4S propeller, and ball links where required are not included.

Battery and Propeller Recommendation: For 3S operation, use a 1500 to 2200 mAh LiPo with the included APC 12 × 4.5 MR propeller. For 4S operation, use a 1500 to 2200 mAh LiPo with a compatible 10–11-inch propeller selected for the aircraft. The included 12 × 4.5 propeller is intended for 3S operation.

Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.

Setup Resources

BOLT ESC Manual Throttle Calibration Video MP Jet Ball Link Kit
