Description

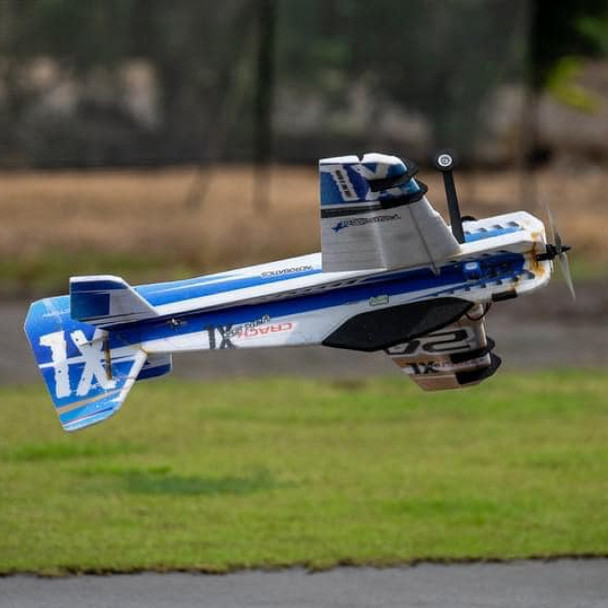

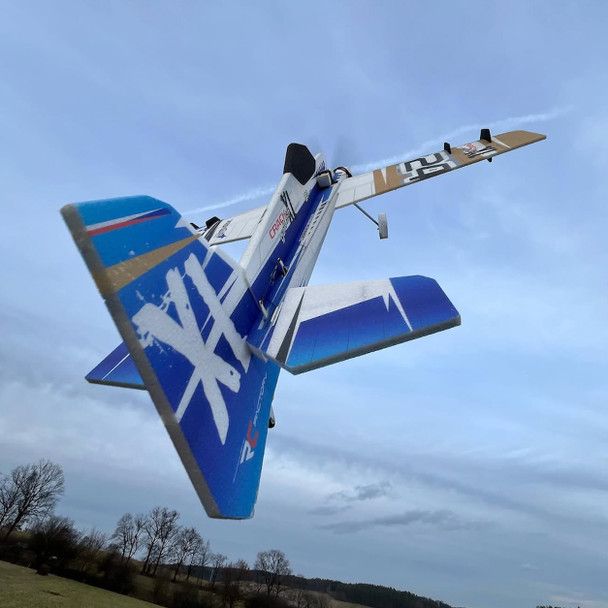

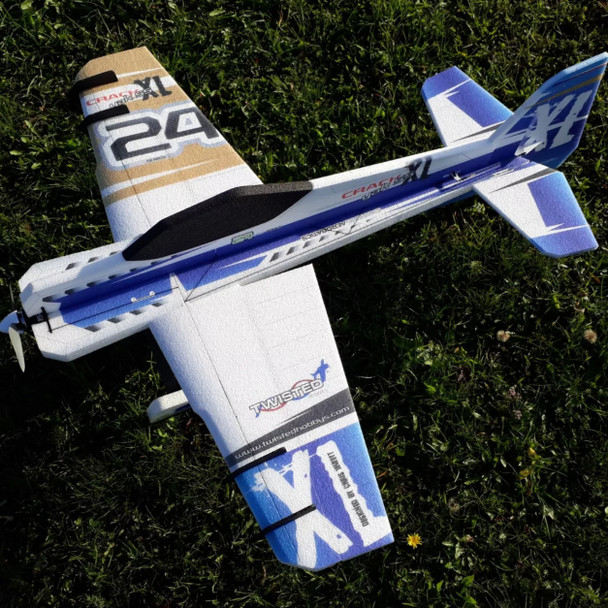

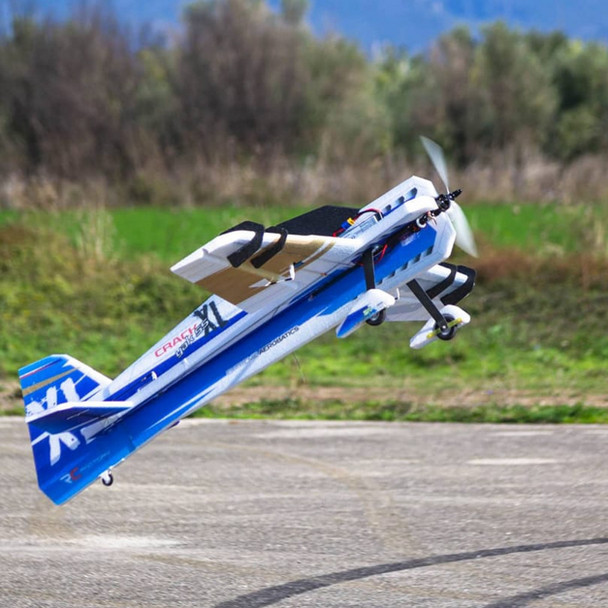

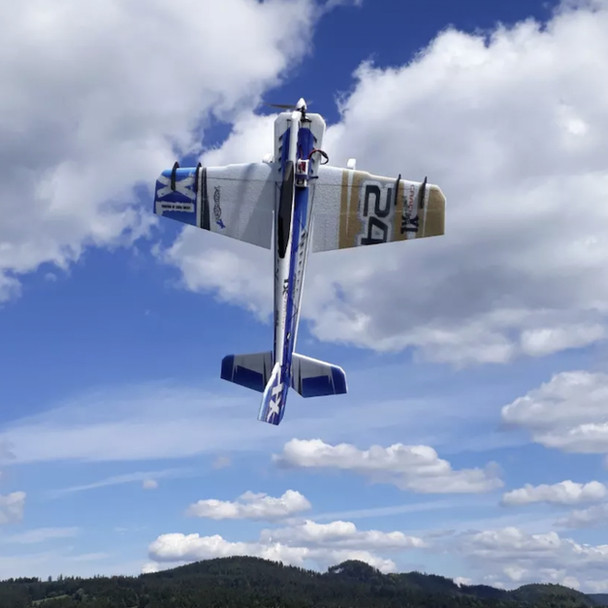

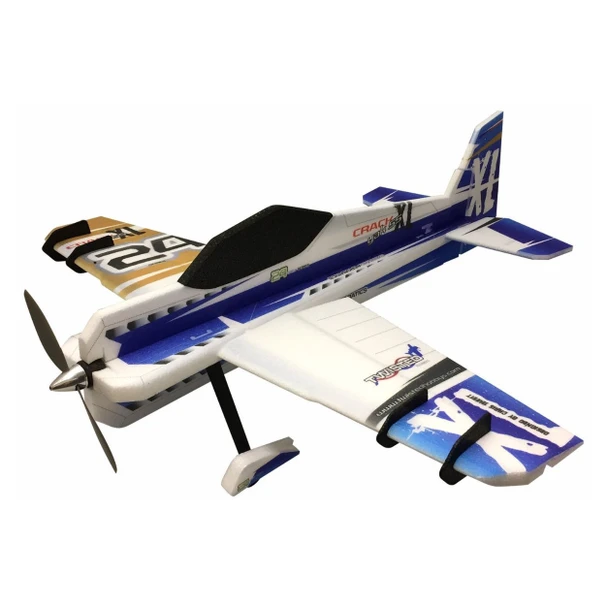

Crack Yak-55 XL V2: 43-Inch EPP 3D Aircraft
The Crack Yak-55 XL V2 brings the familiar handling and responsive 3D performance of the Crack Yak into a larger, fully airfoiled EPP aircraft with excellent visibility and confident outdoor stability.
Its full-flying horizontal stabilizer provides exceptional pitch authority for tumbles, walls, snaps, knife-edge spins, and other advanced maneuvers. The current V2 version also includes the updated landing-gear design.
Features and Specifications
- Wingspan: 42 inches / 1080 mm
- Length: 43 inches / 1120 mm
- Estimated Flying Weight: 27 to 30 oz / 765 to 850 g
- Construction: Lightweight EPP foam with a full stepped-airfoil wing and carbon-fiber reinforcement
- Stabilizer: Full-flying horizontal stabilizer for increased pitch authority
- Landing Gear: Updated V2 landing-gear design
- Recommended Battery: 3S 1500 to 2200 mAh LiPo, with an optional 4S setup using a smaller propeller
- Flight Style: Precision, freestyle, sport, and aggressive 3D aerobatics
- Pilot Level: Intermediate to Advanced
Required to Complete
This is an airframe kit. The recommended electronics, battery, radio system, charger, and adhesives are sold separately. No printed manual is included; downloadable PDF build manuals are available below.
Recommended Matched Power System
View the Crack Yak-55 XL PC17 Matched Power System
Preferred 3S Setup: 1500 to 2200 mAh LiPo with the included APC 12 x 4.5MR propeller.
Optional 4S Setup: 1500 to 2200 mAh LiPo with a compatible 10 to 11-inch propeller.
Power-System Components and Servo Options
- Motor: CSP 2814 1050KV 100 g brushless motor
- ESC: BOLT 45A ESC
- Propeller: APC 12 x 4.5MR propeller for the preferred 3S setup
- CSP Servo Option: Four CSP-D18M digital metal-gear servos
- Vertex Servo Option: Four Vertex VX-HV20D high-voltage metal-case and metal-gear servos
The MP Jet Ball Link Kit is recommended when using the Vertex VX-HV20D servo option with the Crack Yak-55 XL.
Additional Required Items
- 4-channel or greater transmitter and compatible lightweight receiver
- 3S 1500 to 2200 mAh LiPo battery, or suitable 4S battery for the alternative setup
- LiPo-compatible balance charger
- Foam-Tac and CA glue where specified in the manual
Build Resources and Compatible Parts
- View the Twisted Hobbys Crack Yak-55 XL V2 PDF Build Manual
- View the Original RC Factory PDF Build Manual
- Watch the Crack Yak-55 XL Build Video
- Visit the Official Crack Yak-55 XL RC Groups Discussion
- View the TMW Aluminum Motor Mount Upgrade
- Shop Crack Yak-55 XL Replacement Parts
- View the Compatible Ultra Halo XX1 LED Lighting Kit
Videos
-
Twisted Hobbys Crack Yak XL
This is the brand new Twisted Hobbys Crack Yak XL! I am very i...
-
Twisted Hobbys / RC Factory Crack Yak XL - Build Timelapse
Build of the brand new Twisted Hobbys / RC Factory Crack Laser...
-
RC Factory / Twisted Hobbys Crack Yak XL
The brand new Crack Yak XL is out! With full moving elevator a...
-
Crack Yak XL winter edition!
One of the most popular designs - Crack Yak! now available in ...
-
Twisted Hobby’s Crack Yak-55 XL Airplane
Having some fun taking a break from school to do some flying. ...
-
Twisted Hobbys - Crack Yak-55 XL - Build and Maiden
Build process for the Twisted Hobbys 43" EPP Crack Yak-55 XL. ...
7 Reviews
-
YAK XL
My mind was just spaced out by how precise the XL flew. Almost robotic the way it locked on and did exactly whatever was commanded. Zero trim needed on first flight, and the CG was set at mid range. This plane excells at all disciplines...precision rolling circles and straight slow rolls are just super smooth and clean. The build was straightforward with a few modifications...we used 21g servos, 1000kv/442W motor, 50A esc and apc 13x4 and 12x4.5 props. I didnt like the supplied servo arm extensions and stabilizer horn so we made our own from carbon fiber plate. The planes are a little heavier than stock and we were hoping it would fly more like a balsa plane with the carry through momentum for pop tops, slides and tumbles. They actually handle up to 15 kt wind extremely well. My favorite thing to do with the XL is tight flat turns and knife edge looping maneuvers. Knife edge is super powerful and requires zero mix. Rolling is arrow straight and all 3D/XA maneuvers we have learned so far have been easy to make. Ive lown the 42" Edge and Veloxity, and the XL handles waay better and volumes more precise than both. We now have 3 of them!
-
THE Profile foamie
I worked my way up from the lite 32, regular 32, 35 beaver, 39 revolto and now this. Hands down, the greatest plane in the closet. The control and stability make it an absolute joy to fly.
-
Wow wow Wow
This model is amazing! It has quickly replaced my 7 year old Veloxity as my new favorite model to fly. The full functional stab gives this plane amazing acrobatic flight capabilities. Highly recommend. A+++
-
First EPP foam
All i can say is wow , im flying 3d gasser and big electric and 6s 3d electric , but this one is so awesome good to have to practice , the twisted hobby power combo is perfect for thsi plane enough power for 3s 2200 , very floaty and elevator was phenomenal — im going to buy another one as a spare — get yours now
-
CRACK YAK-55 XL - BLUE
Got this plane for my 9 year old grandson and finally he got to fly it tonight. His comments were this is now his best plane and he flies it great loves it on high rates. Plane put a big smile on his face......
-
AWESOME PRODUCT
Love the aggressive elevator and rudder on the Crak Yak XL! A must buy!!!!
-
Crack Yak 55XL
Quality product, well worth the money.
