Power Combo 32" Gee Bee and other models

(No reviews yet) Write a Review
SKU:
PC07
MSRP: $184.93
$151.99
— You save $32.94

Sold Out

Description

The PC07 is a professionally matched four-servo power system developed for the 32-inch Gee Bee and select Twisted Hobbys EPP aircraft. Every component is selected to work together for responsive power, precise control, reliable operation, and straightforward installation. Bundle and save with a proven package that costs less than purchasing the components individually.

PC07 System Overview
2S / 3S Four-Servo System
System
PC07
Motor
CSP-2305 1500KV
ESC
Vertex 16A
BEC Output
6V / 3A SBEC
Battery
2S / 3S 450–600 mAh
Included Propeller
9 × 4.7 for 2S
Matched for the Gee Bee and Select EPP Aircraft
The CSP motor, Vertex ESC, four-servo package, and propeller are matched for the compatible aircraft listed below.

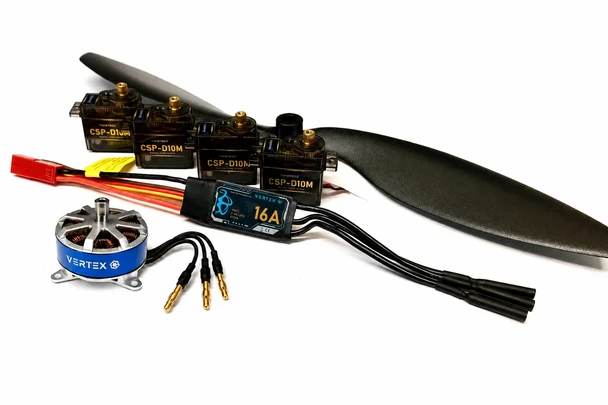

Included in the PC07 Package
1 ×
Approximately 25 g with pre-soldered 2 mm connectors
1 ×
16A continuous with 6V / 3A switching BEC
4 ×
Four 9 g servos for aileron, elevator, rudder, and model-specific control functions
1 ×
Included for the recommended 2S setup
Additional Items Required
Airframe
Compatible Gee Bee, Crack Series, or Piper SC airframe
Flight Battery
2S or 3S 450 to 600 mAh LiPo
Radio System
4-channel or greater transmitter and compatible lightweight receiver
Airframe, battery, receiver, transmitter, charger, adhesives, and the 3S propeller are not included.
Battery and Propeller Recommendation: For 2S operation, use a 450 to 600 mAh LiPo with the included 9 × 4.7 propeller. For 3S operation, use a 450 to 600 mAh LiPo with a compatible 8 × 4 propeller. Battery capacity may be adjusted within the airframe manufacturer’s recommendation to achieve the desired balance and flight duration.
Important Initial Setup: The transmitter’s throttle range must be calibrated before the ESC will arm and operate correctly.
