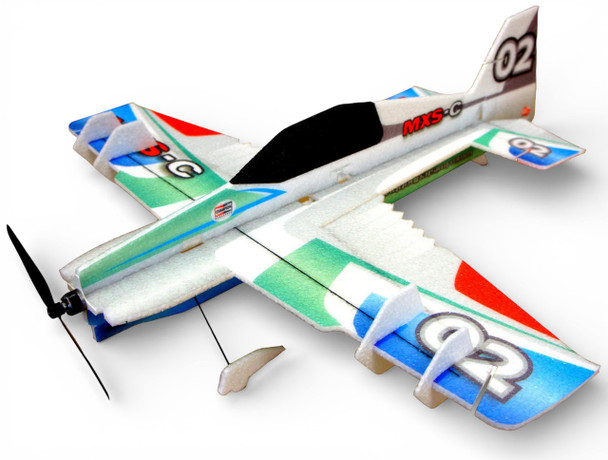

Mini MXS-C: 24-Inch EPP Mini Series

The Mini MXS-C brings the agility, precision, and energetic flying character of the larger MXS-C into a compact 24-inch EPP airframe. Its convenient size makes it an excellent choice for indoor flying, backyard practice, and smaller outdoor flying areas.

More than simply a scaled-down model, the fuselage, wing platform, and control surfaces were refined specifically for the smaller airframe. The result is the quickest and most rigid aircraft in the Mini Series, while its carefully shaped wing and fuselage still provide stable, controlled handling at slower speeds.

Key Features

• Compact version of the larger MXS-C aerobatic design
• Lightweight and durable printed EPP profile construction
• Quickest and most rigid aircraft in the Mini Series
• Refined wing and fuselage shape for controlled slow-speed handling
• Fast and precise response for energetic aerobatic flying
• Large control surfaces for hovering, harriers, and advanced 3D maneuvers
• Well suited for indoor, backyard, and calm outdoor flying

Specifications

• Wingspan: 24 inches
• Length: 25 inches
• Estimated Flying Weight: 90 to 100 g / 3.2 to 3.5 oz
• Construction: Lightweight printed EPP foam with carbon-fiber reinforcement
• Recommended Battery: 2S 180 to 350 mAh LiPo
• Pilot Level: Beginner to Intermediate

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately and listed below. No printed manual is included; a downloadable PDF build manual is available under Build Resources below.

Matched Power-System Components

• CSP 2202-2300KV motor
• BOLT 6A ESC
• Three CSP-D6M digital metal-gear servos
• GWS 7 x 3.5 direct-drive propeller

Recommended Power Setup

• Battery: 2S 180 to 350 mAh LiPo
• Propeller: GWS 7 x 3.5 direct-drive propeller

Additional Required Items

• Radio System: 4-channel or greater transmitter and a compatible lightweight receiver
• Battery: 2S 180 to 350 mAh LiPo battery
• Charger: LiPo-compatible balance charger
• Adhesives: Foam-Tac and thin CA glue

Build Resources, Upgrades and Compatible Parts

• Download the 24-Inch Mini Series PDF Build Manual
• View the Alternate Google Drive Manual
• Watch the 24-Inch Mini Series Build Video
• Visit the 24-Inch Mini Series RC Groups Build Discussion
• Shop the 24-Inch Mini Carbon-Fiber Upgrade Kit
• Shop the Compatible Ultra Halo XX0 LED Lighting Kit
• Shop Compatible 20 to 26 Inch Replacement Parts

We recommend Foam-Tac for the main EPP assembly and thin CA glue for installing the carbon-fiber reinforcement.
