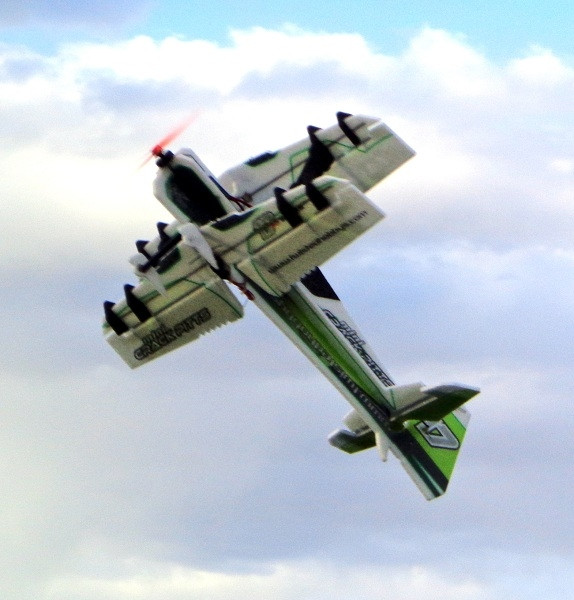

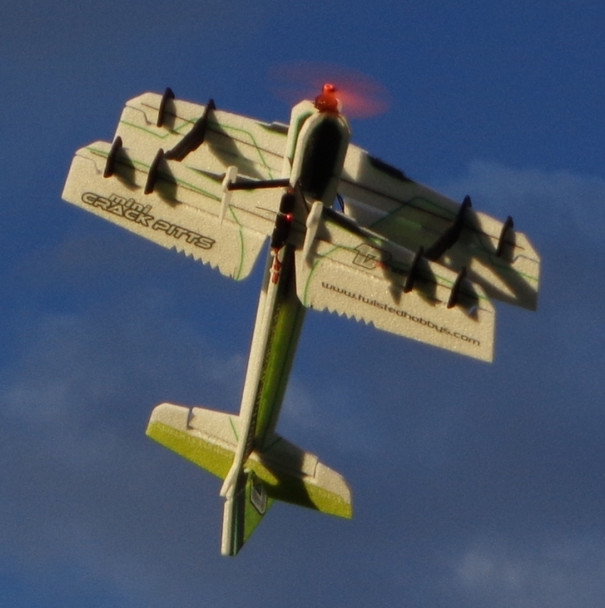

TH 22" EPP Mini Crack Pitts

Mini Crack Pitts: 22-Inch EPP Mini Biplane Series

The Mini Crack Pitts brings the extreme aerobatic performance of the larger Crack Pitts into a compact 22-inch EPP biplane that can be flown indoors, in a backyard, or almost anywhere space permits. Its lightweight construction and high power-to-weight ratio create a uniquely energetic aircraft with outstanding 3D capability.

The compact biplane configuration provides excellent control authority and stable slow-speed handling, while the linked upper and lower ailerons deliver quick rolls and precise response. Durable EPP construction and extensive carbon-fiber reinforcement help the Mini Crack Pitts withstand the demands of regular aerobatic flying.

Key Features

• Compact version of the proven Crack Pitts aerobatic biplane
• Lightweight and durable printed EPP construction
• Carbon-fiber reinforcement and wing-truss construction provide added rigidity
• Linked upper and lower ailerons provide quick and precise roll response
• Large control surfaces for hovering, harriers, rolling maneuvers, and advanced 3D flight
• Stable slow-speed handling with an energetic aerobatic response
• Designed around an efficient lightweight 2S power system

Specifications

• Wingspan: 22 inches
• Length: 23 inches
• Estimated Flying Weight: 100 to 115 g / 3.5 to 4.1 oz
• Construction: Lightweight printed EPP foam with carbon-fiber reinforcement
• Recommended Battery: 2S 240 to 350 mAh LiPo
• Pilot Level: Intermediate to Advanced
• Flying Environment: Indoor facilities, backyards, or calm outdoor conditions

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately and listed below. No printed manual is included; a downloadable PDF build manual is available under Build Resources below.

Matched Power-System Components

• Motor: CSP 2202 2300KV brushless motor
• ESC: BOLT 6A ESC
• Servos: Two CSP-D6M digital metal-gear servos and one CSP-D10M digital metal-gear servo
• Propeller: GWS 7 x 3.5 direct-drive propeller

Additional Required Items

• Radio System: 4-channel or greater transmitter and a compatible lightweight receiver
• Battery: 2S 240 to 350 mAh LiPo battery
• Charger: LiPo-compatible balance charger
• Adhesives: Foam-Tac, thin CA, and medium CA glue

Build Resources, Upgrades and Compatible Parts

• Download the Mini Crack Pitts PDF Build Manual
• Watch the Mini Crack Pitts Build Video
• Shop the Mini Crack Pitts Carbon-Fiber Upgrade Kit
• Shop the Compatible Ultra Halo XX0 LED Lighting Kit
• Shop Compatible 20 to 26 Inch Replacement Parts

We recommend Foam-Tac for the main EPP assembly and thin or medium CA glue where specified for carbon-fiber reinforcement and hardware connections.
