TH 32" EPP Edge 540

(16 reviews) Write a Review
SKU:
RCF 32 Edge 540-HB
Availability:
In Stock — Ready to Ship
Pilot Level:
Intermediate
  • TH 32" EPP Edge 540
  • TH 32" EPP Edge 540
  • TH 32" EPP Edge 540
  • TH 32" EPP Edge 540
  • TH 32" EPP Edge 540
$99.99

Sold Out

Description

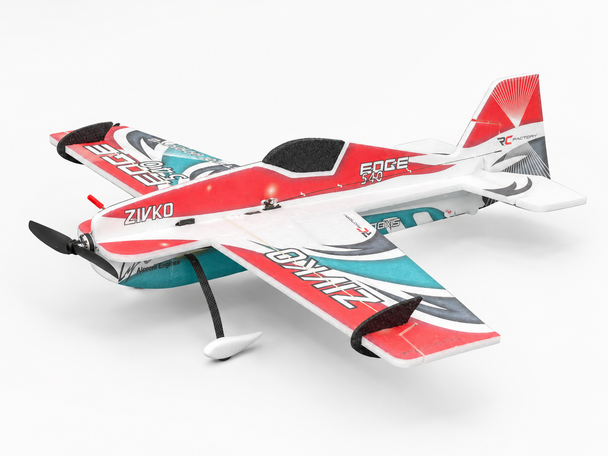

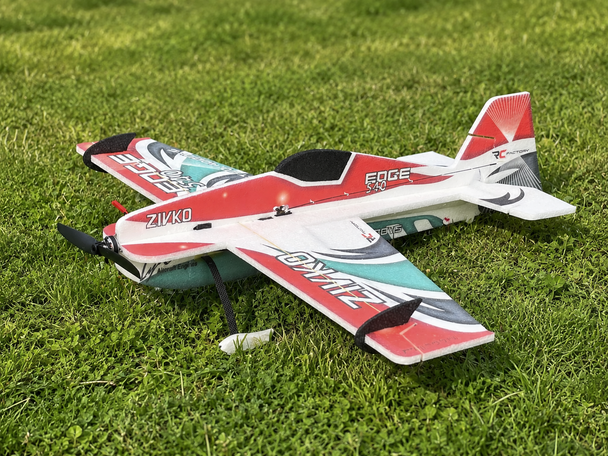

Edge 540: 32-Inch EPP Standard Mono Series

The Edge 540 was developed by Twisted Hobbys and David Kyjovsky, with input from team pilot Chris Jewett, as an approachable and highly capable 3D model for smaller flying areas. Its stable low-speed handling makes it well suited for pilots developing their aerobatic skills, while experienced pilots will appreciate its quick and precise response.

Lightweight EPP construction, pre-hinged control surfaces, and a carbon-fiber truss system create a rigid and durable airframe. The Edge 540 remains controlled during slower flight while providing the control authority needed for hovering, harriers, rolling maneuvers, and aggressive aerobatics.

Key Features

  • Developed with David Kyjovsky and Twisted Hobbys team pilot Chris Jewett
  • Lightweight and durable printed EPP profile construction
  • Stable handling for pilots developing their 3D and aerobatic skills
  • Pre-hinged control surfaces help simplify assembly
  • Carbon-fiber truss system provides additional airframe rigidity
  • Adjustable control-rod end links help reduce unwanted control play
  • Controlled low-speed handling with quick aerobatic response
  • Large control surfaces for hovering, harriers, rolling maneuvers, and advanced 3D flight
  • Compatible with both 2S and 3S power setups

Specifications

  • Wingspan: 32 inches
  • Length: 31 inches
  • Estimated Flying Weight: Approximately 7.2 oz / 204 g with landing gear and a 2S 450 mAh battery
  • Construction: Lightweight printed EPP foam with carbon-fiber reinforcement
  • Recommended Battery: 2S or 3S 450 to 600 mAh LiPo
  • Pilot Level: Intermediate

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately and listed below. No printed manual is included; a downloadable PDF build manual is available under Build Resources below.

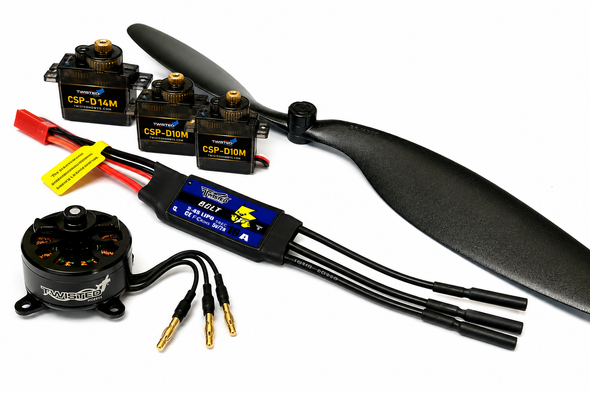

Recommended Matched Power System

View the Edge 540 Matched Power System

Our spec-matched PC02 power system includes the properly selected motor, ESC, three servos, and propeller for dependable power, precise control, and balanced 2S or 3S performance.

Matched Power-System Components

  • Motor: CSP-2305 1500KV brushless motor
  • ESC: BOLT 16A ESC
  • Servos: One CSP-D14M digital metal-gear servo and two CSP-D10M digital metal-gear servos
  • Propeller: 9 x 4.7 slow-fly propeller

Recommended Power Setup

  • Lightweight 2S Setup: 2S 450 to 600 mAh LiPo with the included 9-inch propeller
  • Higher-Power 3S Setup: 3S 450 to 600 mAh LiPo with a compatible 8-inch propeller

The 2S setup provides lighter and slower performance, while 3S provides increased speed and vertical power.

Additional Required Items

Build Resources, Upgrades and Compatible Parts

We recommend Foam-Tac for the main EPP assembly and thin or medium CA glue where specified for carbon-fiber reinforcement and hardware connections.

View AllClose

16 Reviews

  • 5

    Great

    Posted by Andrew on Jul 5th 2024

    Picked this up as a warm up and park flyer 3d practice plane.. once you get it trimmed up and the cg right, it flies like a knife. I enjoy flying this as much as the big planes to be honest… going to order another. This 32” size is just right imo for park flying. I had the veloxity 42” model and it was just a little too big with people around at the park to have in the air.. this 32” wont cause any damage.. and doesn’t attract too much attention. Recommended. Also any wind under 10mph is ok.. still gets tossed around but controllable and great for practice. Any higher of winds you’d be fighting to keep it stable

  • 5

    32" EDGE 540

    Posted by Bob on Oct 20th 2021

    I built this airplane a year and a half ago. Wasn't skilled enough for 3D back then. It hung on the wall collecting dust. Just took it out this weekend and fell in love with it. Basically does what you tell it to do. A real confidence builder. Rolls straight and level. Lands like a feather. Great 3D airplane. Love it.

  • 5

    All twisted hobbys planes

    Posted by Unknown on Nov 20th 2020

    Absolutely awesome! Have more fun with my crack yaks then all my giant scales

  • 5

    540 twisted edge 32”

    Posted by Don Taylor on Nov 16th 2020

    This is my 3rd twisted plane. An incredible flyer that will hone your skills with stick time. These planes are perfect to practice anytime/ anywhere. This transfers to flying the bigger machines at a fraction of the cost in the event of kissing the ground. You will not be disappointed

  • 5

    Backyard Fun

    Posted by Brent Riley on Aug 17th 2020

    First 3D plane I've owned and first plane I've built from a kit. I've only been flying two months but already getting into aerobatics pretty heavy. I fly everything at the ragged edge of my personal skill (and if that allows, the model's flight envelope). Wanted something cheap and tough to push my skills with. Very pleased with the performance. Normal aerobatic maneuvers are easily kept within a 160' box with slow/3D moves kept within half of that. Very responsive and easy to save. Belly lands from a harrier with no gear just fine. I haven't even started to touch this plane's full potential in 10 flights on 2S. Handles wind great up to about 6 mph for me. My only complaint is that some of the servo cuts on the Edge weren't done at the factory like they were on the Yak shown in the build video.

  • 5

    Edge 540 32"

    Posted by Mark Speirs on May 14th 2020

    I have been out the the hobby of several years and this is the first plane is a while. Building was good as long as you what the videos. Written instruction are just OK. Just complete its maiden flight and love this plane. I highly recommend this plane.

  • 5

    TH 32" EPP EDGE 540 GH W/ HD LANDING GEAR

    Posted by Bob D on Apr 4th 2020

    Twisted Hobby is a very customer oriented organization ! These models are top notch. I own two different planes from these guys. The 540 Edge 32" is a good build. Their shipping was fast & the kits are well made ! Brad in their customer service was always attentive & very informative. He was also always available thru email if you can believe it or not ! Good job guys/gals ! 5 stars from me !

  • 5

    Very nice kit.

    Posted by HansB on Dec 12th 2019

    Great customer service and fast shipping!

  • 5

    Second summer still wows!!!

    Posted by Dave on Sep 8th 2018

    Buy this plane if you want a great time and a constant smile on your face !!!

  • 5

    32" Edge 540

    Posted by EG Harshman on Sep 1st 2018

    My first 3d plane and all I can say is amazing in every way. This little plane is easy to see with its bright red color scheme. It can be flown extremely slow or very fast depending on your desire of the day. The roll rate is insane with nothing added but aileron & high rates. Indestructable is probably one of the best features. For some reason TWISTED HOBBIES FOAM is superior to any other I have tried or flown. The foam may crack of get distorted but that is an easy fix. Very light equals little damage which equates to more flying time. I have been flying with .95mah nanotech 2 cell batteries which I find give you much more flying time with a bit more punch. Vertical? Yes yes yes.It can hover, dance, go straight verticle & I can even stop in mid air. I am old school. No gyros or stabilizers for me.Just a few thought to sway you to go 3d 540 Edge. You will not be disappointed.

View AllClose
