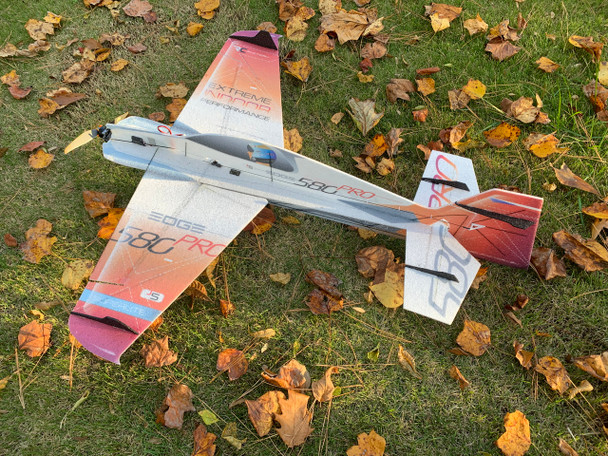

TH 33" EPP Edge 580 Pro SL

TH 33" EPP Edge 580 Pro SL

Developed by indoor aerobatic pilot Jan Spatny, the Edge 580 Pro SL combines lightweight construction with oversized control surfaces and an airframe layout designed for extreme maneuverability.

Its low wing loading provides smooth indoor performance, while the strengthened aileron hinges and responsive control geometry support aggressive freestyle, advanced 3D, and reversible 4D flying.

Features and Specifications

• Designer: Jan Spatny
• Wingspan: 33 inches
• Length: 36 inches
• Estimated Flying Weight: 150 to 185 g / 5.3 to 6.5 oz, depending on equipment
• Construction: Lightweight printed 4 mm EPP with carbon-fiber reinforcement
• Control Surfaces: Oversized surfaces with strengthened aileron hinges
• Flight Characteristics: Fast snap rolls, tight knife-edge loops, strong side-force performance, and high control authority
• Power-System Compatibility: Conventional 3D or reversible 4D
• Flight Style: Indoor freestyle, advanced aerobatics, 3D, and 4D
• Flying Environment: Indoor facilities or calm outdoor conditions
• Pilot Level: Intermediate to Advanced

Required to Complete

This is an airframe kit requiring assembly. The power system, radio equipment, battery, charger, and adhesives are sold separately. No printed manual is included; a downloadable PDF manual is available under Build Resources below.

Standard Super Lite Components

• CSP 2203 1800KV brushless motor
• BOLT 16A brushless ESC
• One CSP-D10M and two CSP-D6M digital servos
• GWS 8 x 4.3 slow-fly propeller
• Recommended battery: 2S 450 mAh LiPo

Vertex 3D/4D Components

• Vertex VS28-05C 1950KV 3D/4D motor
• Vertex 17A switchable 3D/4D reversible ESC
• Three CSP or Vertex digital servos, depending on selected combo
• APC 8 x 4.1 slow-fly propeller for standard 3D flight
• APC 8 x 3.7 SFR reversible propeller for 4D flight
• Recommended battery: 2S or 3S 600 mAh LiPo

Always install the correct propeller and matching motor hub for the selected 3D or 4D operating mode.

Additional Required Items

• Compatible 4 to 6-channel transmitter and lightweight receiver
• Compatible LiPo battery
• LiPo-compatible balance charger
• Foam-Tac, thin CA, and medium CA adhesive

Build Resources and Compatible Parts

• Download the Edge 580 PDF Build Manual
• Shop Compatible Super Lite Replacement Parts

We recommend Foam-Tac for the main EPP assembly and thin or medium CA where specified for carbon-fiber reinforcement and hardware connections.
