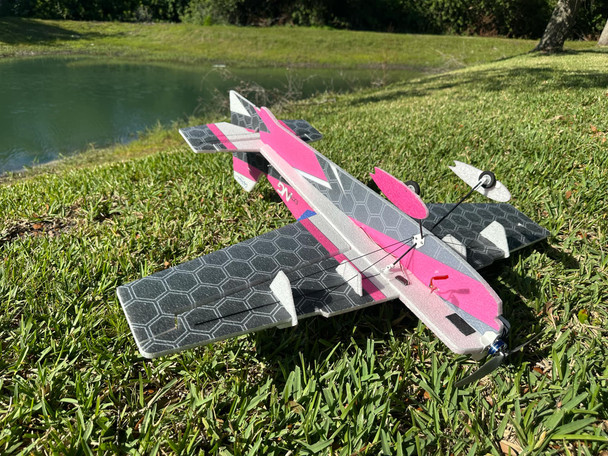

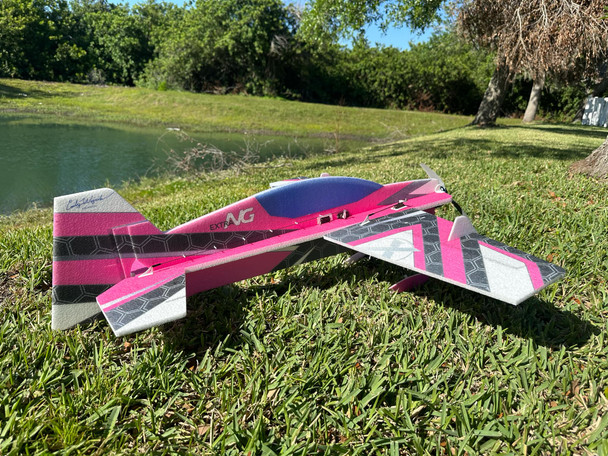

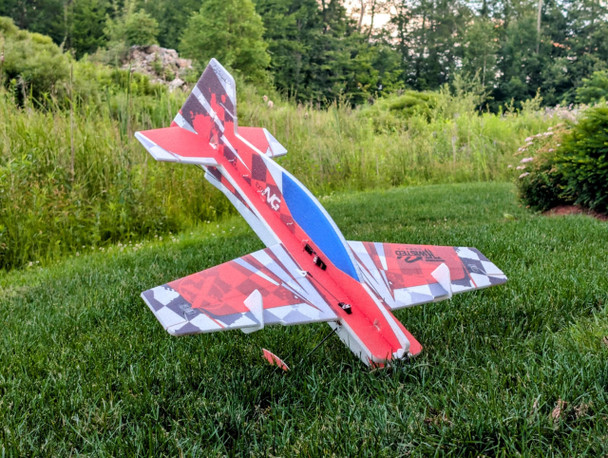

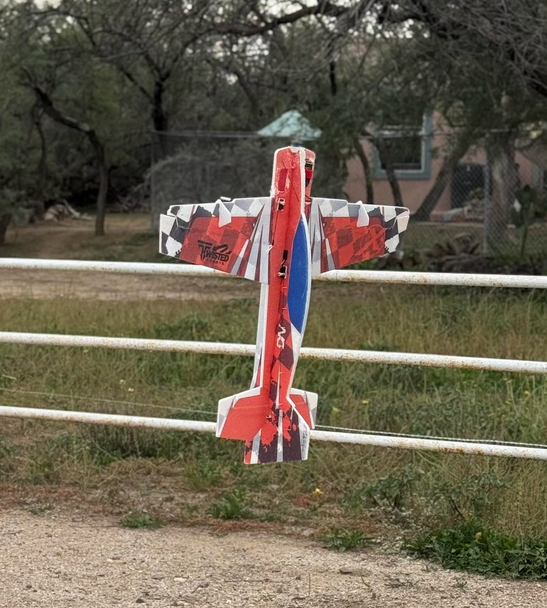

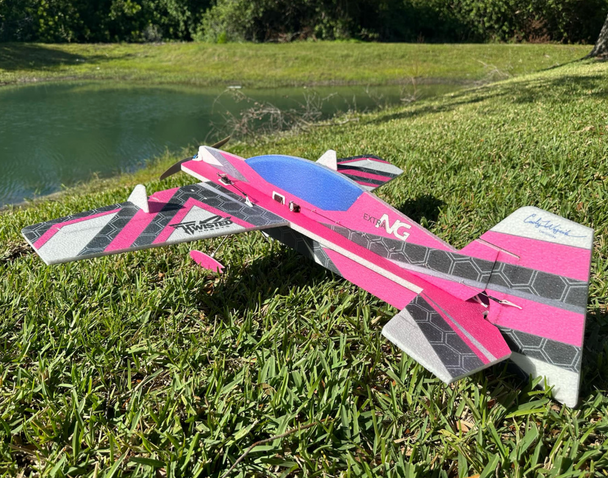

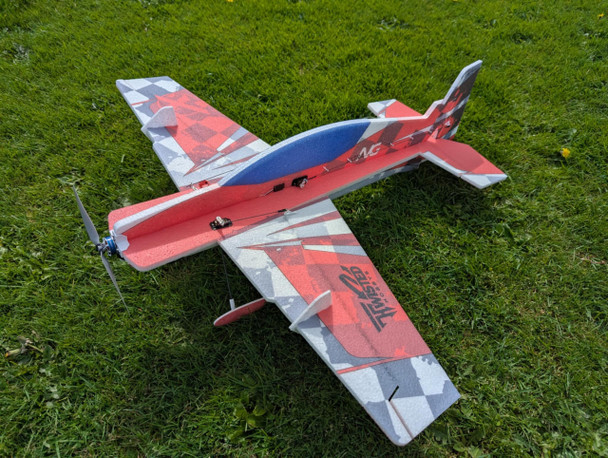

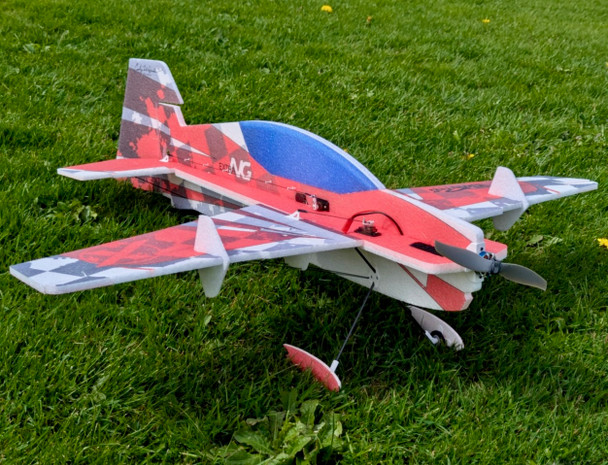

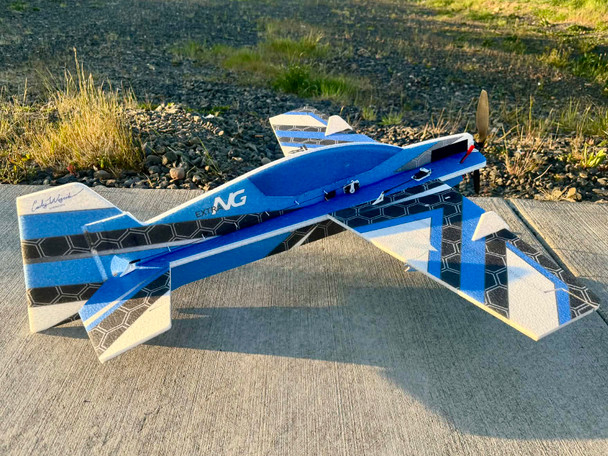

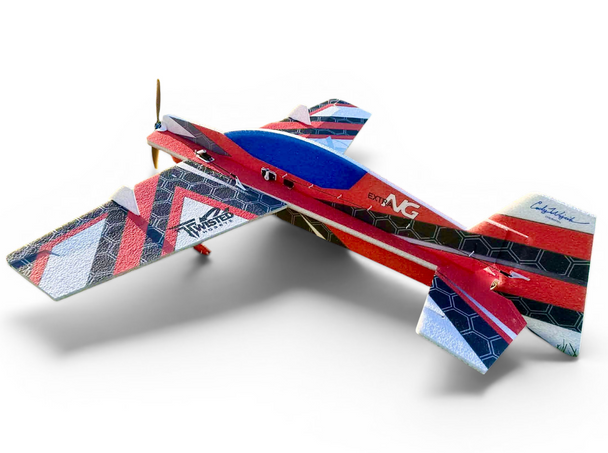

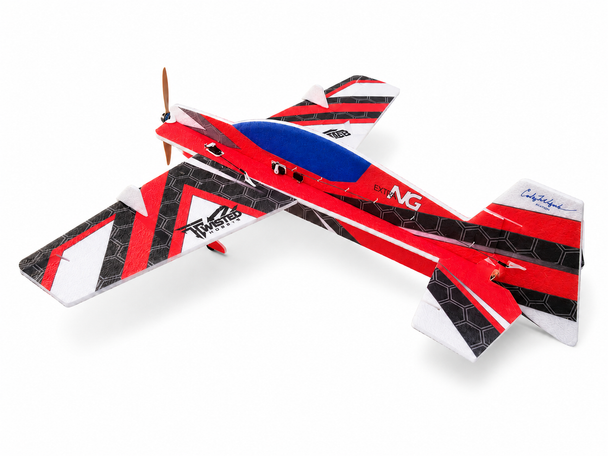

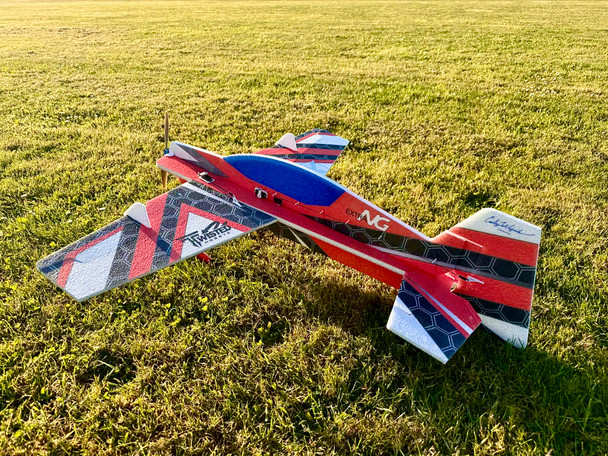

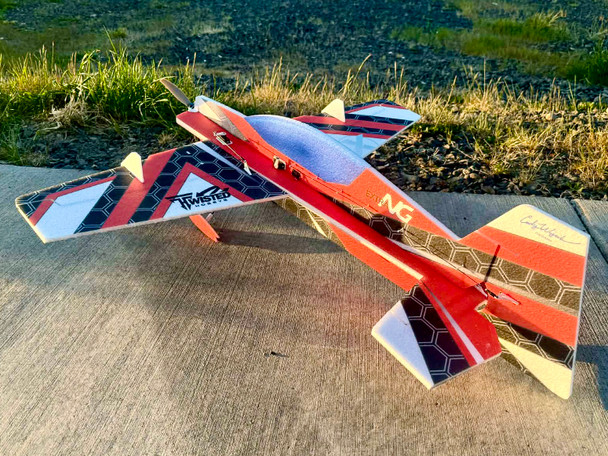

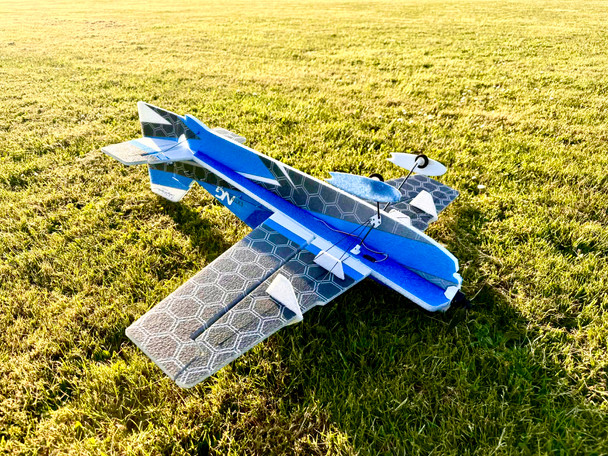

Extra NG: 33-Inch EPP Backyard 3D Aircraft
Designed by Cody Wojcik in collaboration with Extreme Flight, the Extra NG combines recognizable full-scale styling with lightweight EPP profile construction and modern modular assembly.
Its compact size is well suited for backyard and park flying while providing the control authority needed for hovering, harriers, rolling maneuvers, and aggressive 3D aerobatics.
Features and Specifications
- Wingspan: 33.5 inches
- Length: 33.5 inches
- Estimated Flying Weight: 240 to 256 g / 8.5 to 9 oz
- Construction: Printed EPP profile airframe with carbon-fiber reinforcement
- Assembly: Modular construction designed for straightforward building and maintenance
- Power Compatibility: 2S or 3S LiPo
- Recommended Battery: 450 to 600 mAh LiPo
- Flight Style: Backyard and park 3D aerobatics
- Pilot Level: Intermediate
Required to Complete
This is an airframe kit. The recommended power system and additional required items are sold separately. No printed manual is included; a downloadable PDF build manual is available below.
Recommended Matched Power System
View the Extra NG PC23 Matched Power System
2S Setup: 450 to 600 mAh LiPo with a 9 x 4.7 propeller.
3S Setup: 450 to 600 mAh LiPo with a compatible 8 x 4.3 propeller.
Matched Power-System Components

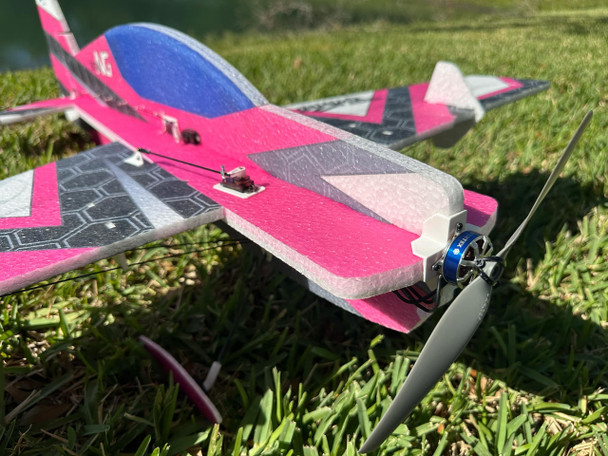

- Motor: Vertex VS28 1550KV brushless motor
- ESC: Vertex 16A ESC with 6V / 3A switching BEC
- Servos: Four CSP-D10M digital metal-gear servos
- Propeller: 9 x 4.7 Slow Fly propeller for the recommended 2S setup
Important: The included 9 x 4.7 propeller is intended for 2S operation. Use a compatible 8-inch propeller when operating the matched system on 3S.
Additional Required Items
- 4-channel or greater transmitter and compatible lightweight receiver
- 2S or 3S 450 to 600 mAh LiPo battery
- LiPo-compatible balance charger
- Foam-Tac and thin CA glue

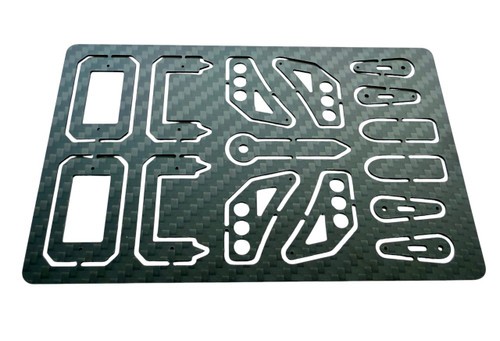

Build Resources and Compatible Parts
Videos
-
Twisted Hobbys 33” Extra NG Dusk Flight
Oliver Willis flying the new Extra NG paired with the Ultra Ha...
-
Twisted Hobbies/ Extreme Flight Extra NG
Jake Arnold flying the Twisted Hobbies 33” Extra NG. Using the...
-
Twisted Hobbies/ Extreme Flight Colab Extra NG
Pre-Orders Only, Now Available, Limited Quantities! www.twist...
-
Twisted Hobbys - Extra NG - Build and Maiden
Build process for the Twisted Hobbys 33" EPP Extra NG. A how ...
3 Reviews
-
EXTRA NG
This is the best and most durable flat foamy I have had so far, and my first twisted hobbys airframe. I have about 50 flights on it now (mostly indoor despite this being an outdoor airframe) and I could not be happier. It flies on rails and takes a crash well. Foam tac is a must for the foam to foam glue joints. I had to use a dremel to expand the 3d printed servo doublers for my emax servos but that was the only build gripe.
-
Extra NG
I've been flying these 32" series planes for 15 years. Flew the ExtraNG this morning and was for the first time blown away. It's on a different level than all the others I've flown. For 5 flights I could not get over how well it flies. It does everything you want it to do in really well controlled manner. Also a very easy build with the well designed 3D printed parts.
-
This extra ng is a good one
I have been flying a few of these planes from TH for a while now and this extra ng is the one that I find myself using more than any other. I put some halo lights on a few of them and this one just seems to work the best for me at night and with a some wind also. I’d recommend this to anyone thinking about getting it. Thinking of picking up a second one myself… mine has a few scars from some “dumb thumb” accidents ?
