TH 34" EPP ARES INDOOR JET

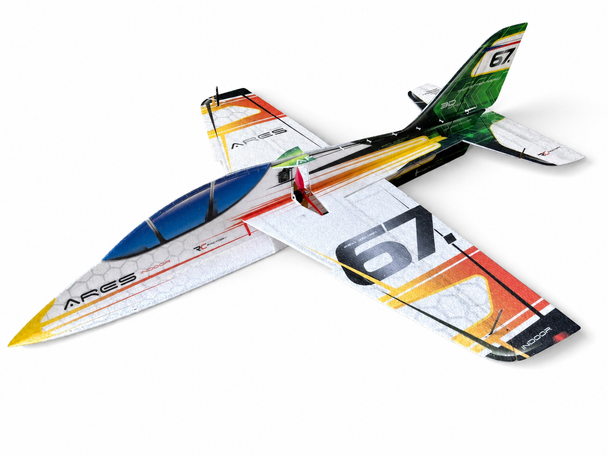

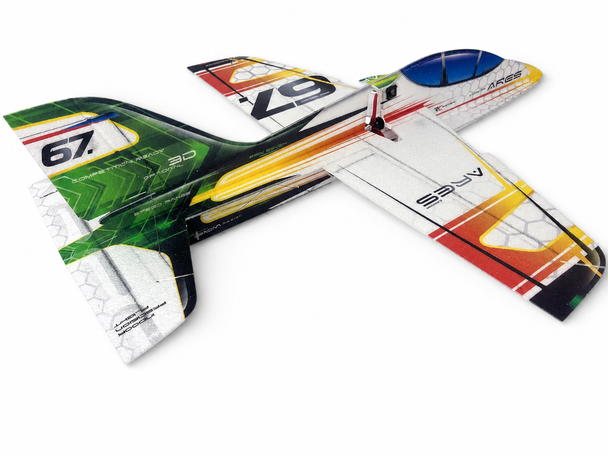

TH 34-Inch EPP Ares Indoor Jet

Created with Krill Aircraft and Jack Jehle, the Ares Indoor Jet is a lightweight EPP version of the full-size composite Ares. Its distinctive profile captures the appearance and flying character of the original while providing the durability needed for regular indoor flying.

The Ares offers smooth and predictable control across all axes. Dual aileron servos allow precise adjustment and optional flap programming, while the centrally mounted motor helps protect the propeller during minor impacts and landings.

Features and Specifications

• Wingspan: 870 mm / 34.3 inches
• Length: 995 mm / 39.2 inches
• Estimated Flying Weight: 130 to 150 g / 4.6 to 5.3 oz
• Construction: Printed 4 mm EPP foam with carbon-fiber reinforcement
• Control Setup: Dual aileron servos with optional flap programming
• Motor Position: Centrally mounted to help protect the propeller
• Recommended Battery: 2S 350 to 600 mAh LiPo with the matched power system
• Flight Style: Indoor precision and aerobatic flying
• Pilot Level: Intermediate to Advanced

Required to Complete

This is an airframe kit. The recommended power system and additional required items are sold separately and listed below. No printed manual is included; a downloadable PDF build manual is available under Build Resources.

Matched Power-System Components

• Motor: Vertex 1806 2300KV brushless motor
• ESC: Vertex 16A ESC with 6V / 3A switching BEC
• Servos: Four CSP-D6M digital metal-gear servos
• Propeller: GF 5128 5-inch three-blade propeller

Additional Required Items

• Radio System: 4-channel or greater transmitter and a compatible lightweight receiver
• Battery: 2S 350 to 600 mAh LiPo battery
• Charger: LiPo-compatible balance charger
• Adhesives: Foam-Tac and CA glue where specified in the manual

Build Resources, Upgrades and Compatible Parts

• View the Ares Indoor Jet PDF Build Manual
• Watch the Ares Indoor Jet Build Video
• Visit the Official Ares Indoor Jet RC Groups Discussion
• View the Ares Carbon-Fiber Control-Horn Upgrade Kit
• View the Compatible Ultra Halo XX0 LED Lighting Kit
• Shop Compatible 32 to 34-Inch Replacement Parts
